Description

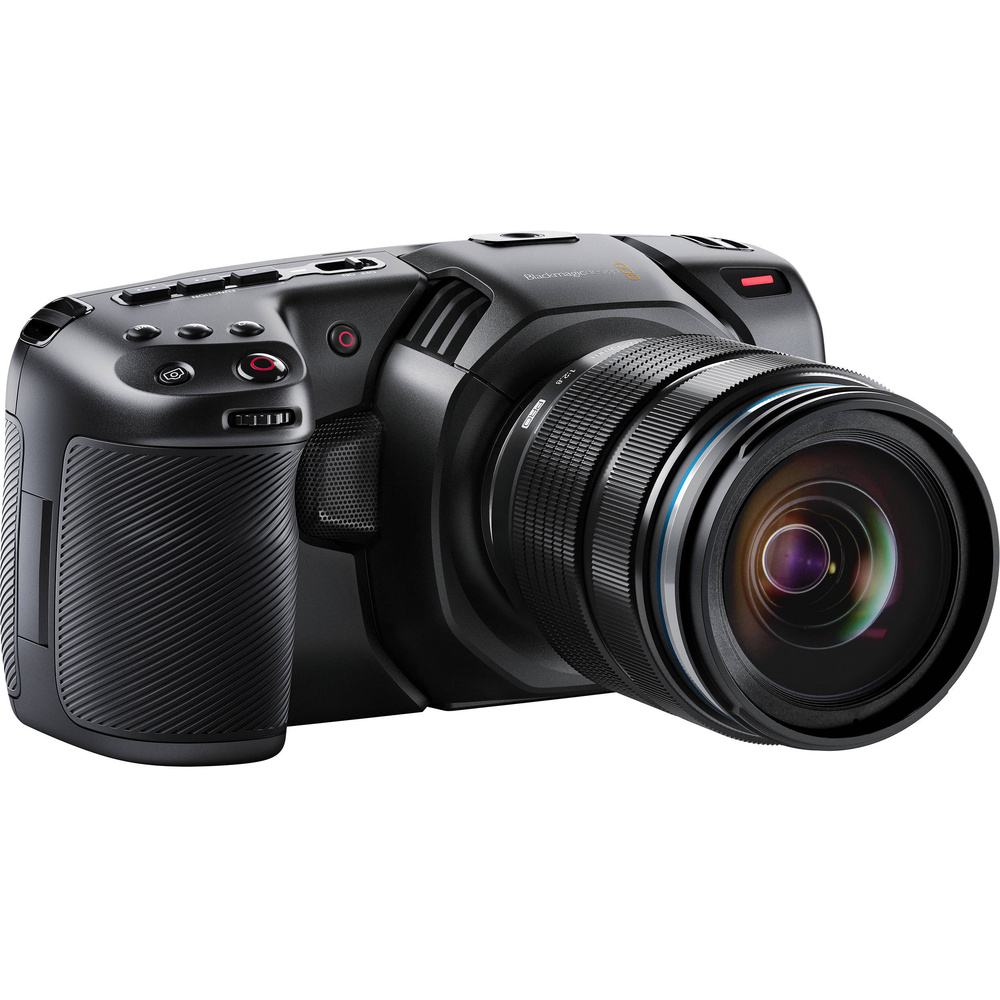

The Blackmagic Design Pocket Cinema Camera 4K is a compact digital cinema camera for shooters who want a Micro Four Thirds body with a large 4/3 sensor and direct control over video capture. It suits solo operators, small crews and filmmakers who need a camera for documentary work, studio use or run and gun filming.
It records DCI 4K up to 60 fps, 2.8K anamorphic raw up to 80 fps and up to 2.6K 120 fps for Super16 lenses. The camera uses a 4/3 CMOS sensor measuring 18.96 x 10 mm, has 13 stops of dynamic range, native ISO from 100 to 25,600 and a 5 inch touchscreen. It also includes stereo microphones and a Micro Four Thirds lens mount with lens communication.
In practice, it works with Micro Four Thirds lenses and can also suit Super16 lenses when higher frame rates are needed. It records to CFast or SD UHS-II cards and can send video over HDMI or USB-C. In the box are the camera, a DaVinci Resolve Studio activation key, a Canon LP-E6 type battery, a 30W power supply with international adapters and a dust cap.
Specifications
| Imaging | |
|---|---|
| Lens Mount | Micro Four Thirds |
| Lens Communication | Yes |
| Sensor Resolution | Not Specified by Manufacturer |
| Image Sensor | 18.96 x 10 mm (Four Thirds) CMOS |
| Image Stabilisation | No |
| Built-In ND Filter | No |
| Internal Filter Holder | No |
| Capture Type | Stills & Video |
| Exposure Control | |
| Shutter Type | Electronic Rolling Shutter |
| ISO/Gain Sensitivity | Native: 100 to 25,600 |
| Advertised Dynamic Range | 13 Stops |
| Video Capture | |
| Internal Recording | Blackmagic RAW 4096 x 2160 up to 59.94 fps [28 to 136 MB/s] 3840 x 2160 up to 59.94 fps [26 to 127 MB/s] 2880 x 2160 up to 80 fps [20 to 96 MB/s] 4096 x 1720 up to 75 fps [22 to 108 MB/s] 2688 x 1512 up to 120 fps [13 to 63 MB/s] 1920 x 1080p up to 120 fps [7 to 33 MB/s] ProRes 422/ProRes 422 HQ/ProRes 422 Proxy/ProRes 422LT 4096 x 2160 up to 59.94 fps [24.25 to 117.88 MB/s] 3840 x 2160 up to 59.94 fps [22.4 to 110 MB/s] 1920 x 1080p up to 120 fps [5.6 to 27.5 MB/s] |
| Video Output | 4:2:2 10-Bit via HDMI 1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps Raw 12-Bit via USB 4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 3840 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps |
| Fast-/Slow-Motion Support | Yes |
| Built-In Microphone | Stereo |
| IP Streaming | Yes |
| Interface | |
| Media/Memory Card Slot | Slot 1: CFast Slot 2: SD/SDHC/SDXC (UHS-II) |
| Video I/O | 1x HDMI (Unspecified Signal) Output |
| Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input 1x 1/8" / 3.5 mm TRS Stereo Headphone Output 1x Mini XLR Mic/Line (+48 V Phantom Power) Input |
| Power I/O | 1x Weipu SF610/S2 Input |
| Other I/O | 1x USB-C Video Output 1x 1/8" / 3.5 mm (Timecode) Input (Shared with Mic/Line Input) |
| Wireless | Bluetooth Control |
| Mobile App Compatible | Yes: iOS Only App Name: Blackmagic Camera Control Functionality: Adjust Settings, Remote Control |
| Global Positioning (GPS, GLONASS, etc.) | No |
| Monitor | |
| Display Type | Primary Monitor: Fixed 5" Touchscreen LCD |
| Resolution | Primary Monitor: 1920 x 1080 |
| Viewfinder | |
| Type | Optional, Not Included |
| Focus | |
| Focus Mode | Automatic, Manual Focus |
| Power | |
| Battery Type | Canon LP-E6 |
| Environmental | |
| Operating Conditions | 32 to 104°F / 0 to 40°C up to 90% Humidity |
| Storage Conditions | -4 to 113°F / -20 to 45°C |
| General | |
| Shoe Mount | No |
| Tripod Mounting Thread | 1/4"-20 Female |
| Accessory Mounting Thread | 1x 1/4"-20 |
| Material of Construction | Carbon Fibre |
| Dimensions (W x H x D) | 7 x 3.8 x 3.4" / 177.8 x 96.5 x 86.4 mm |
| Weight | 1.5 lb / 680.38 g (Body Only) |
Product details
| Battery | Lithium-Ion Included |
|---|---|
| Camera Model | Blackmagic Design Pocket Cinema Camera 4K |
| Bodies/Kits | Body Only |
| Camera Body Mount | Micro Four Thirds |
In the box
- Blackmagic Design Pocket Cinema Camera 4K
- DaVinci Resolve Studio Activation Key
- Canon LP-E6 Type Battery
- 30W Power Supply with International Adapters
- Dust Cap
- Limited 1-Year Manufacturer Warranty
