Description

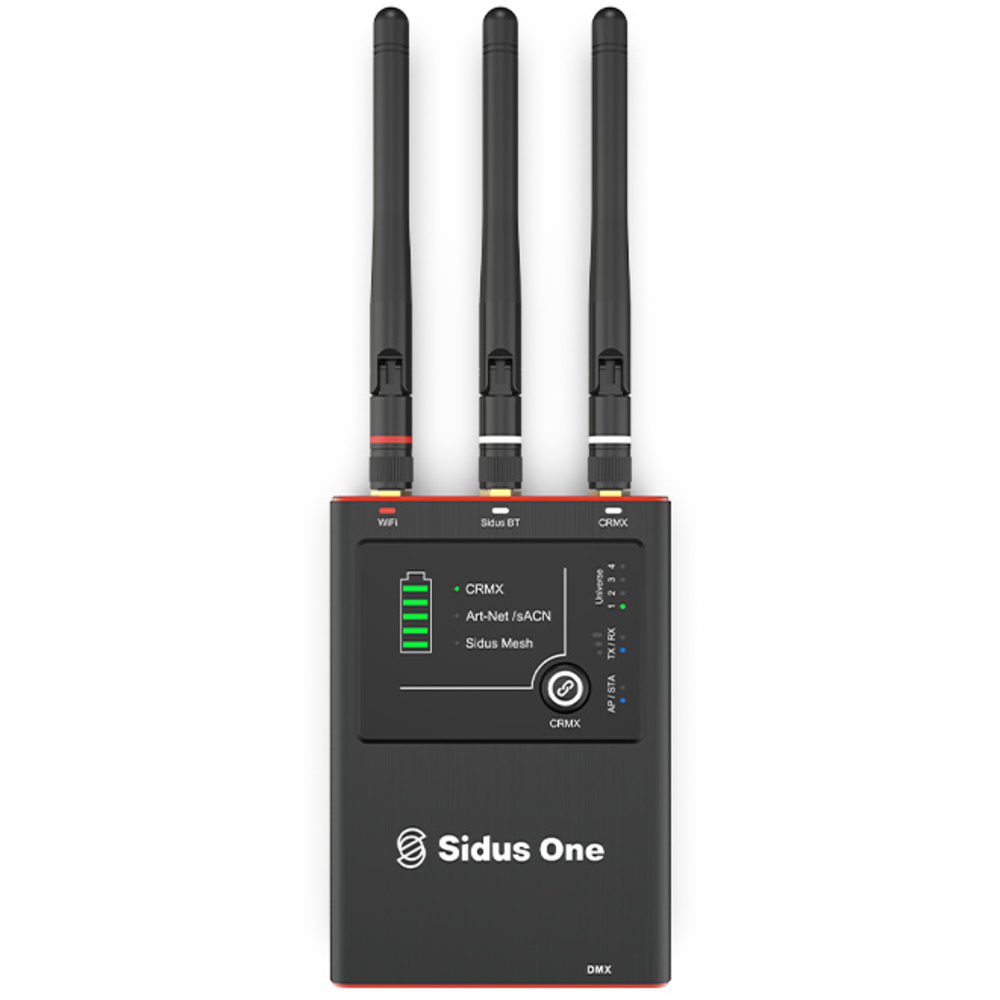

Aputure Sidus One Wireless DMX Transceiver: a DMX device.
Highlights include Built-in wireless router, optimized for sidus link Pro app, compact and expandable and plug and play.
Key specifications: battery life 18 hours; weight 0.302.kg / 0.67lbs; dimensions (excluding antenna) 11.3 x 7.5 x 2.33cm / 4.45 x 2.95 x 0.92in; universe support 1 to 4 Universes; operating frequency Wi-Fi 5.8GHz.
In the box: sidus one, antenna - CRMX, antenna - sidus BT, antenna - Wi-Fi, USB Type-A to USB Type-C Charging Cable (80cm) and sidus one 2-Way splitter cable (35cm). Manufacturer model number APR0316A31.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Connectivity | CRMX, DMX512, RDM, Art-Net via Wifi, sACN via Wifi, Sidus Link Bluetooth. The RDM function is only available in the RX mode. |
|---|---|
| Universe Support | 1 to 4 Universes |
| Operating Frequency Wi-Fi | 5.8GHz |
| Operating Frequency | CRMX / Sidus BT 2.4GHz |
| Wireless Range Bluetooth | ≤180m / ≤591ft. The reported Wireless Range is based on an ideal experimental environment (open and unobstructed). Results may vary based on the operating environment. |
| Wireless Range Wi-Fi | ≤120m / ≤394ft. The reported Wireless Range is based on an ideal experimental environment (open and unobstructed). Results may vary based on the operating environment. |
| Wireless Range CRMX | ≤300m / ≤984 ft. The reported Wireless Range is based on an ideal experimental environment (open and unobstructed). Result may vary based on the operating environment. |
| Wi-Fi Modes | AP mode/STA mode |
| CRMX Mode | TX mode/RX mode. In TX mode, you can transfer DMX512 or Wi-Fi data to CRMX, and in RX mode, you can connect the DMX512 port of Sidus One to the DMX512 port of the fixture, and the Sidus One will act as a receiver to receive CRMX data and send it to the fixture. |
| Battery Life | 18 hours |
| Lithium Polymer Battery | 3.7V 5600mAh |
| Charging Input | USB Type-C (5V/2A) |
| Charge Time | 3.5h |
| IP Rating | IP54 |
| Operating Temperature | -20°C to 45°C / -4°F to 113°F |
| Firmware Upgradeable | Sidus BT, USB-C |
| Cooling Method | Passive Cooling |
| Dimensions (excluding antenna) | 11.3 x 7.5 x 2.33cm / 4.45 x 2.95 x 0.92in |
| Weight | 0.302.kg / 0.67lbs |
In the box
- Sidus One
- Antenna - CRMX
- Antenna - Sidus BT
- Antenna - Wi-Fi
- USB Type-A to USB Type-C Charging Cable (80cm)
- Sidus One 2-Way Splitter Cable (35cm)
