Description

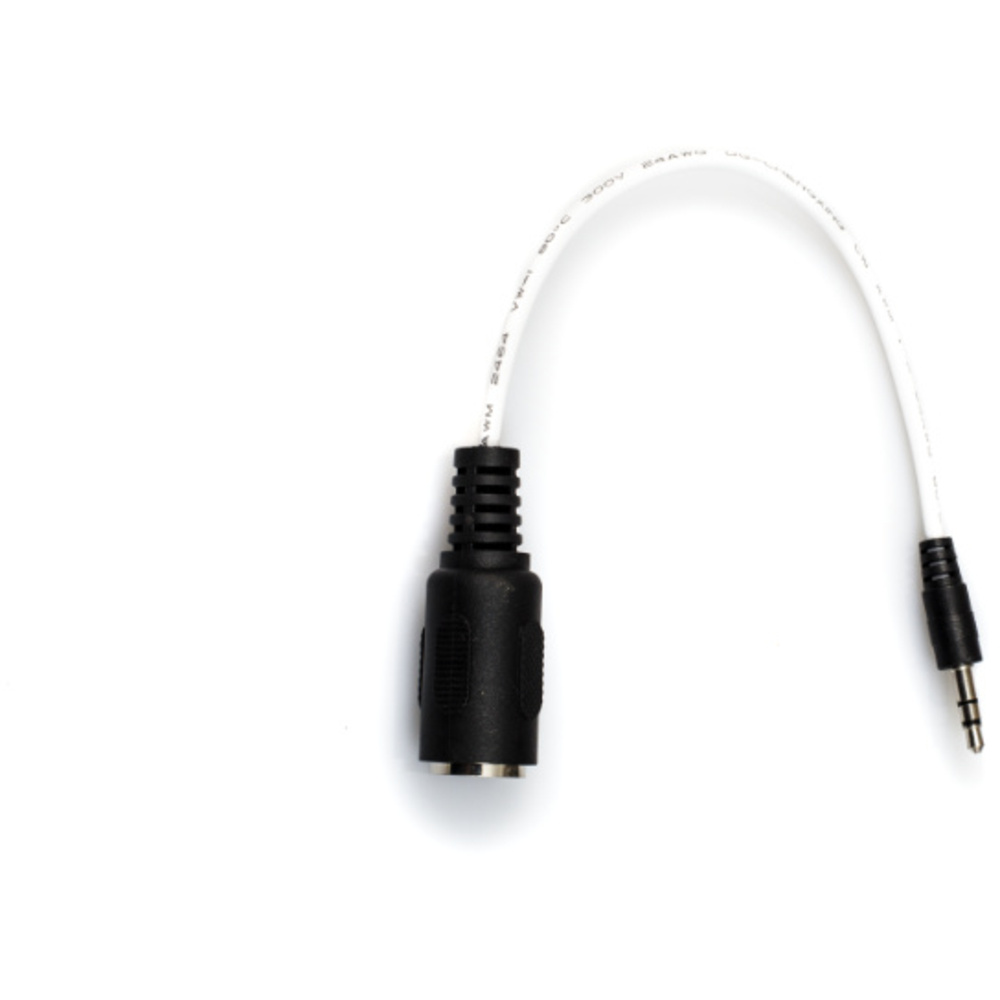

The 1010music MIDI Adapter Type B Male 3.5mm TRS to Female 5 pin DIN is a short MIDI adapter cable for gear that uses Type B TRS MIDI connections. It suits users with older 1010music products who need to connect to standard MIDI cables and DIN-equipped devices. The compact 22 cm lead keeps the connection close and tidy.
It has a male stereo 3.5 mm TRS plug at one end and a female 5 pin DIN MIDI connector at the other. The cable uses a copper core and nickel plated brass connectors. MIDI mapping is Type B, with pin 4 on the tip, pin 5 on the ring, and pin 2 not connected on the shield. The length is 22 cm, or 0.2 m.
In use, the adapter lets standard MIDI cables connect to compatible TRS MIDI ports on older 1010music products. It works with devices that use Type B TRS MIDI connections and pairs with regular 5 pin DIN MIDI leads. The box contains one 1010music MIDI Adapter Type B Male 3.5mm TRS to Female 5 pin DIN.
Specifications
| Brand | 1010music |
|---|---|
| Manufacturer model number | 004 |
| Cable length | 22 cm (8.5 in) |
| End 1 connector | male stereo minijack / 3.5 mm TRS |
| End 2 connector | female 5 pin DIN MIDI connector |
| MIDI mapping | Type B |
| Core material | Copper core |
| Connector material | Nickel plated brass connectors |
| Pin 4 mapping | Tip |
| Pin 5 mapping | Ring |
| Shield mapping | Pin 2 not connected |
Product details
| Length Meters | 0.2 m |
|---|---|
| Compatible With | Older 1010music products that use Type B TRS MIDI connections |
In the box
- 1010music MIDI Adapter Type B Male 3.5mm TRS to Female 5 pin DIN
