Description

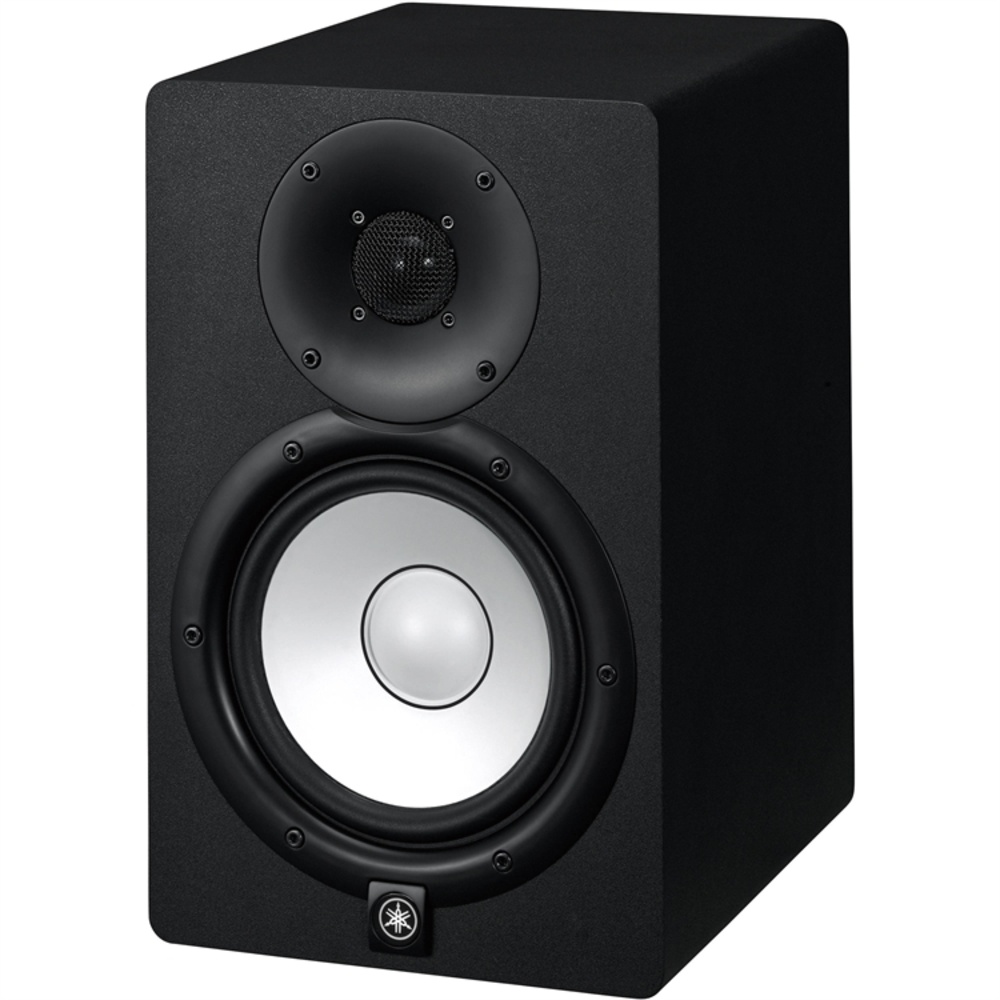

The Yamaha HS7 is a powered studio monitor for recording, mixing and playback in small to medium studio setups. It suits users who want a single nearfield speaker for checking balance, detail and low end while working at a desk or in a project room. Its bi-amped design and bass-reflex cabinet are aimed at accurate monitoring rather than adding colour.

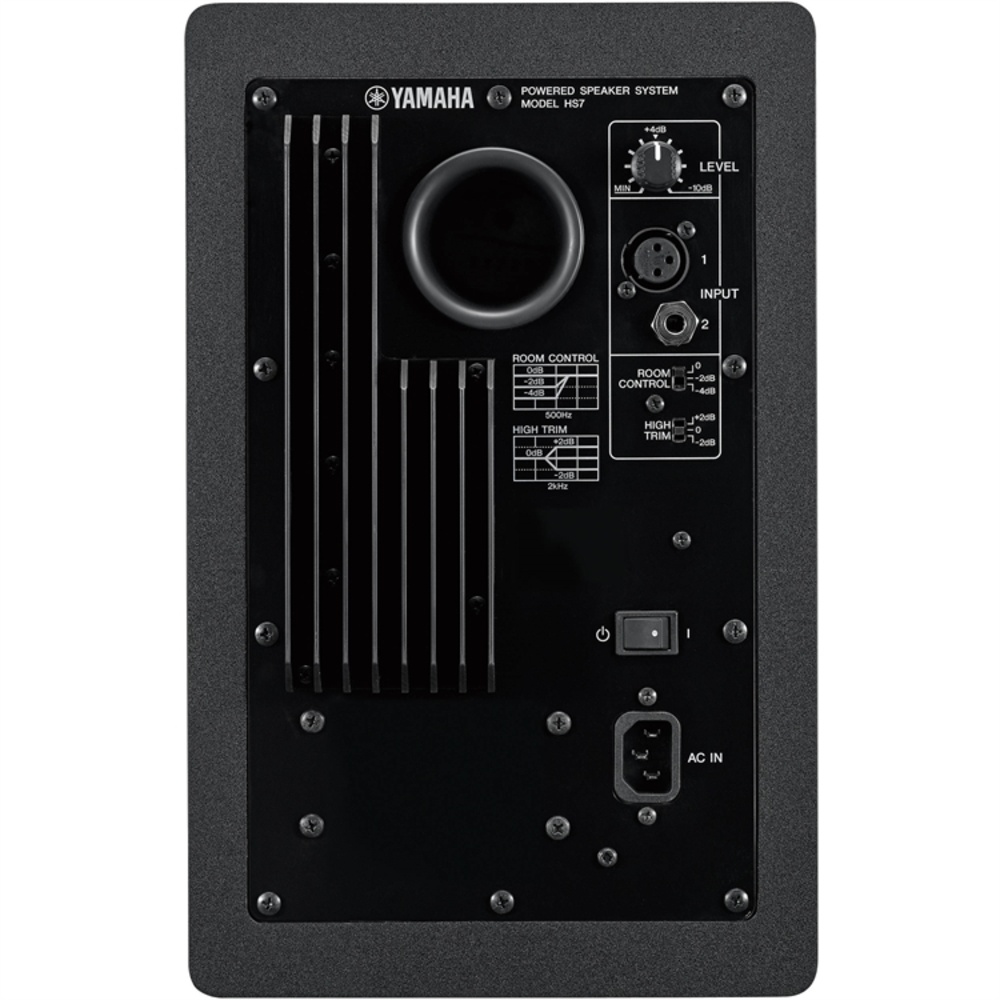

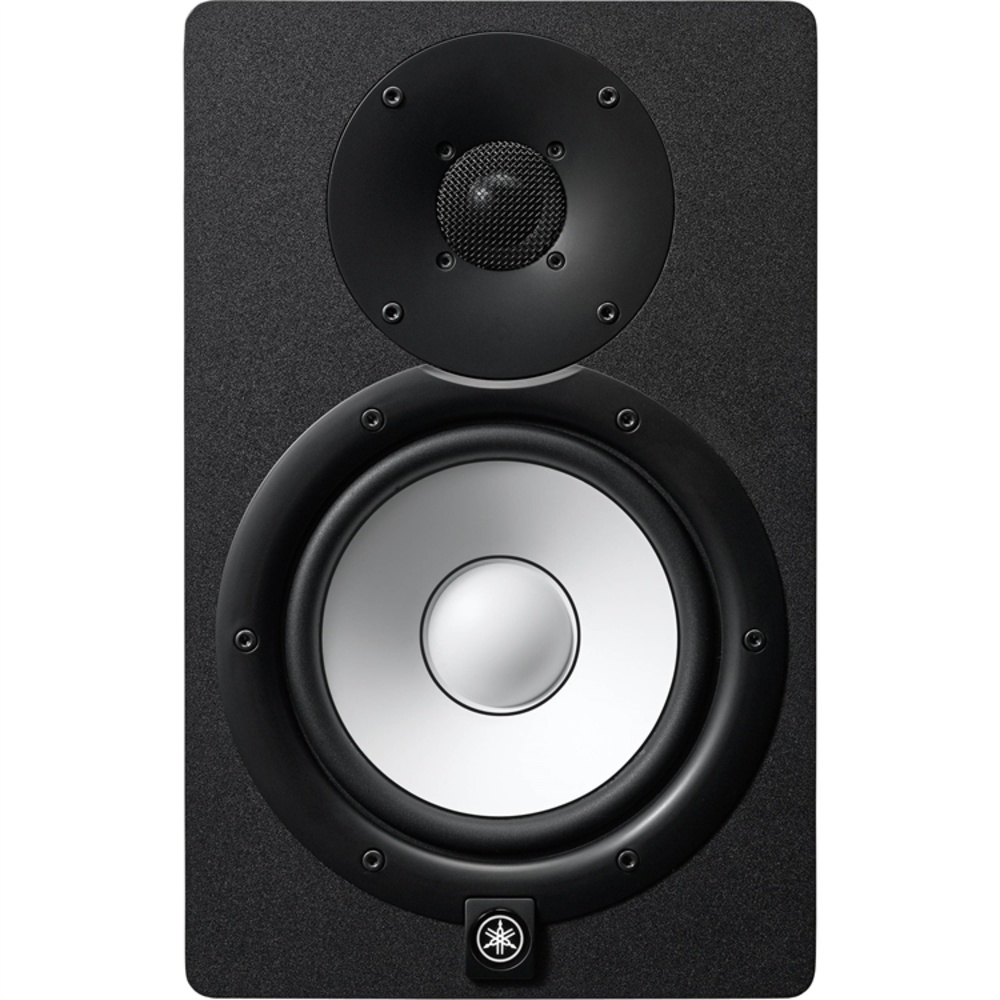

The HS7 uses a 165 mm cone woofer and 25 mm dome tweeter, with 95W total output made up of 60W for low frequencies and 35W for high frequencies. It has a frequency response of 43 Hz to 30 kHz and a 2 kHz crossover point. Connection options include one balanced XLR input and one balanced 1/4-20 TRS input, plus level, high trim and room control switches.
In practice, it connects straight to a mixer, audio interface or monitor controller with balanced outputs. It can be used as a left, right or single reference monitor depending on the setup. The cabinet is MDF and measures 210 x 332 x 284 mm, weighing 8.2 kg. No box contents are specified, so only the monitor can be described here.
Specifications
| System Type | 2-Way Bi-Amped Powered Studio Monitor |
|---|---|
| Frequency Response | 43 Hz to 30 kHz |
| Crossover Frequency | 2 kHz |
| Transducer | LF: 165 mm Cone HF: 25 mm Dome |
| Output Power | Total: 95W LF: 60W HF: 35W |
| Input Sensitivity | -10 dBu / 10 kΩ |
| Inputs | 1x Balanced XLR3-31 Type 1x 1/4" (6.35 mm) Balanced TRS |
| Controls | Level Control (+4 dB/Centre Click) AEQ: High Trim Switch (+/- 2 dB @ HF) Room Control Switch(0, -2, -4 dB under 500 Hz) |
| Indicators | 1x Power On White LED |
| Power Consumption | 55 W |
| Enclosure | Type: Bass-Reflex Material: MDF |
| Dimensions (WxHxD) | 210 x 332 x 284 mm |
| Weight | 8.2 kg |
