Description

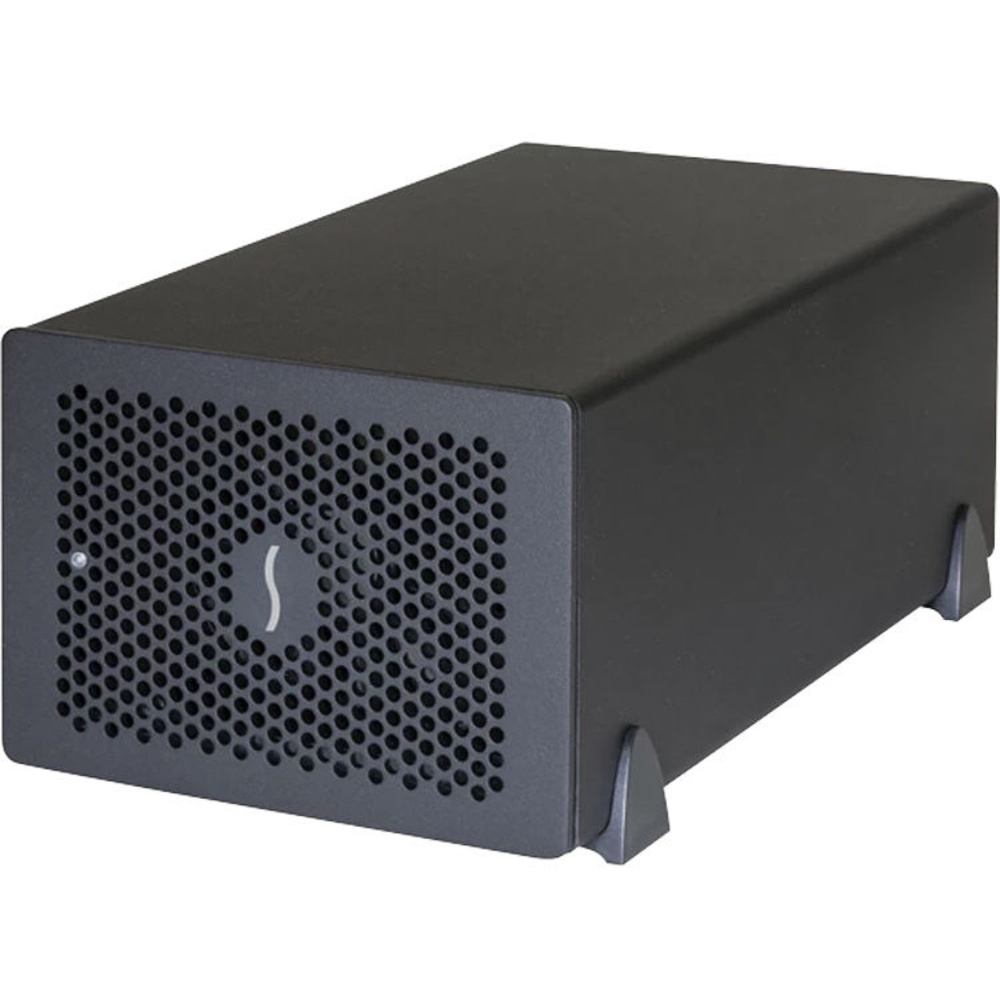

The Sonnet Echo Express SE IIIe Thunderbolt 3 Expansion Chassis for PCIe Cards is an expansion drive. Designed for PCIe Cards.
Highlights include use PCIe cards via Thunderbolt 3, 2 x PCIe 3.0 x8/x8 | 1 x PCIe 3.0 x8/x4, 2 x 40 Gb/s Thunderbolt 3 ports, daisy-chain up to 5 Thunderbolt Devices and supports two 4K displays.
Key specifications: weight 2.6 lb / 1.18 kg; dimensions 6.5 x 4.6 x 11" / 16.51 x 11.68 x 27.94 cm; Inputs/Outputs 2 x USB-C (Thunderbolt 3); system connection Thunderbolt 3; PCIe connectors 1 x 6-Pin.
In the box: Sonnet echo express SOE IIIe Thunderbolt 3 expansion chassis for PCIe cards, Thunderbolt 3 cable (2.3' / 0.7m), ThunderLok 3 connector retainer clip, 120W Universal Power Adapter, Power cord and free lifetime customer technical support. Manufacturer model number ECHO-EX-SE3E-T3.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Key Specs | |
|---|---|
| Expansion Slots | 2 x PCIe 3.0 x8 (x8 mode) 1 x PCIe 3.0 x8 (x4 mode) |
| System Connection | Thunderbolt 3 |
| Inputs/Outputs | 2 x USB-C (Thunderbolt 3) |
| PCIe Connectors | 1 x 6-Pin |
| General | |
| Supported PCI Card Sizes | Full-Height, Half-Length, Single-Width, Double-Width |
| OS Compatibility | Linux Windows macOS *As of November, 2019: Cheque with manufacturer for the most up-to-date compatibility |
| Power | |
| Power Source Type | 1 x 120 W External Adapter |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Port Power Delivery | 100 W Max |
| Cooling | |
| Fans | 1 x 80 mm PWM |
| Maximum Airflow | 31.4 CFM |
| Noise Level | 17.1 dBA |
| Environmental | |
| Operating Temperature | 32 to 95°F / 0 to 35°C |
| Physical | |
| Form Factor | Desktop |
| Construction Material | Aluminium |
| Certifications | RoHS |
| Status Monitoring | LED Indicator |
| Host Cable Length | 2.3' / 0.7 m |
| Dimensions | 6.5 x 4.6 x 11" / 16.51 x 11.68 x 27.94 cm |
| Weight | 2.6 lb / 1.18 kg |
In the box
- Sonnet Echo Express SOE IIIe Thunderbolt 3 Expansion Chassis for PCIe Cards
- Thunderbolt 3 Cable (2.3' / 0.7m)
- ThunderLok 3 Connector Retainer Clip
- 120W Universal Power Adapter
- Power Cord
- Free Lifetime Customer Technical Support
