Description

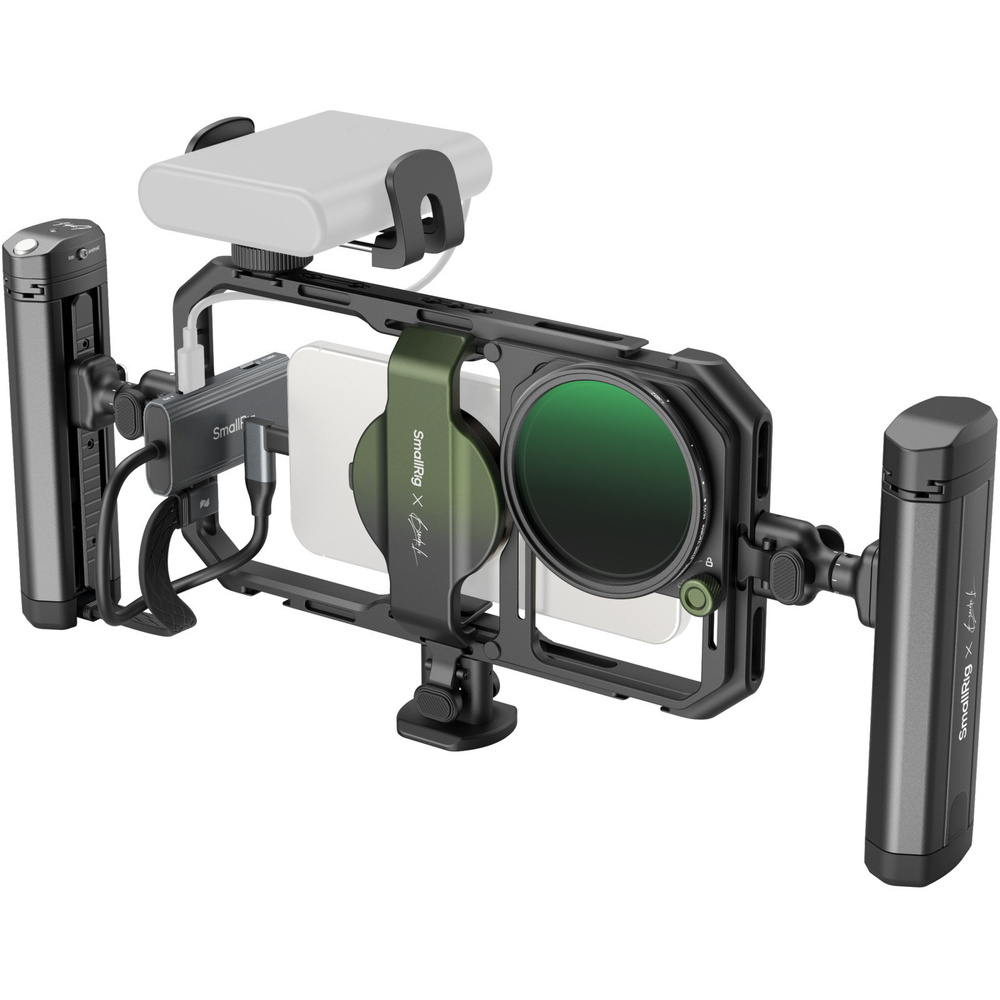

The SmallRig x Brandon Li 4596 All-in-One Mobile Video Kit is a smartphone rig kit for mobile filming, vlogging and content creation. It suits users who want a more stable phone setup with mounting points, quick release options and built in control. The kit combines a phone cage with handles and accessories to help turn a phone into a practical video rig.

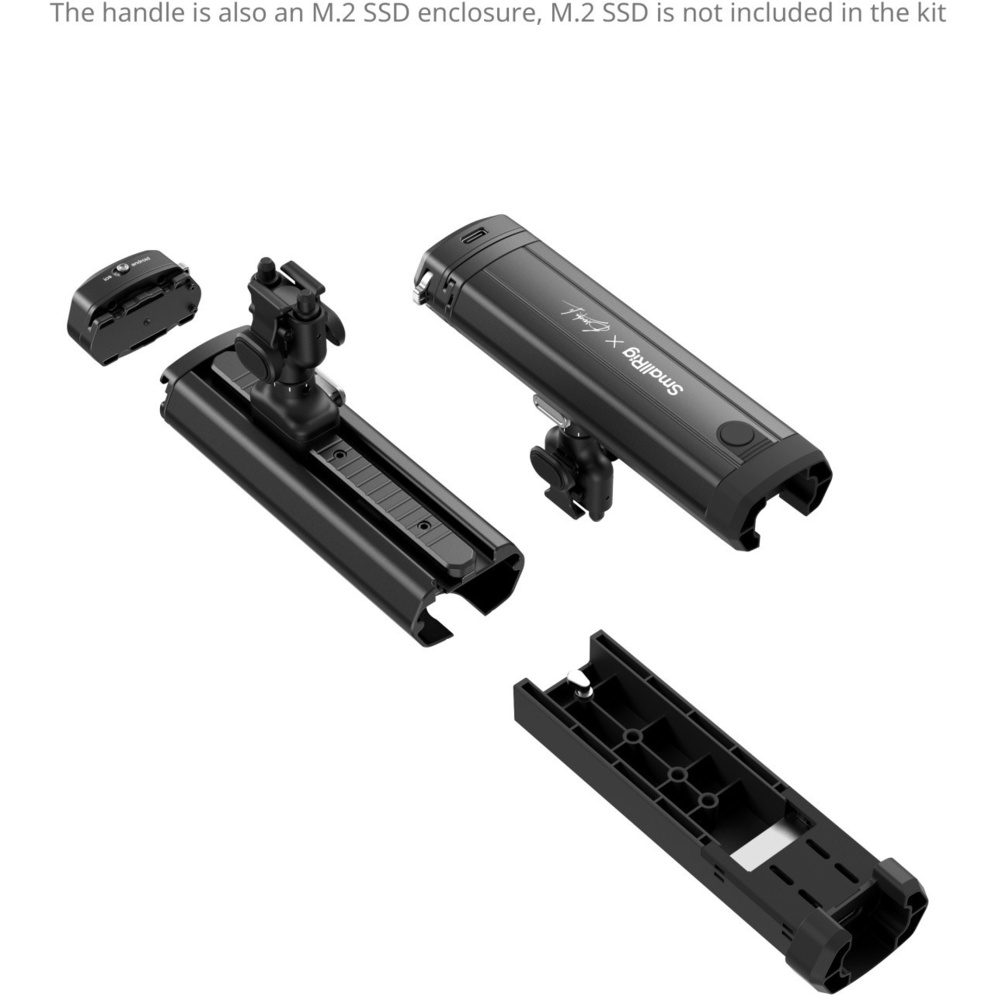

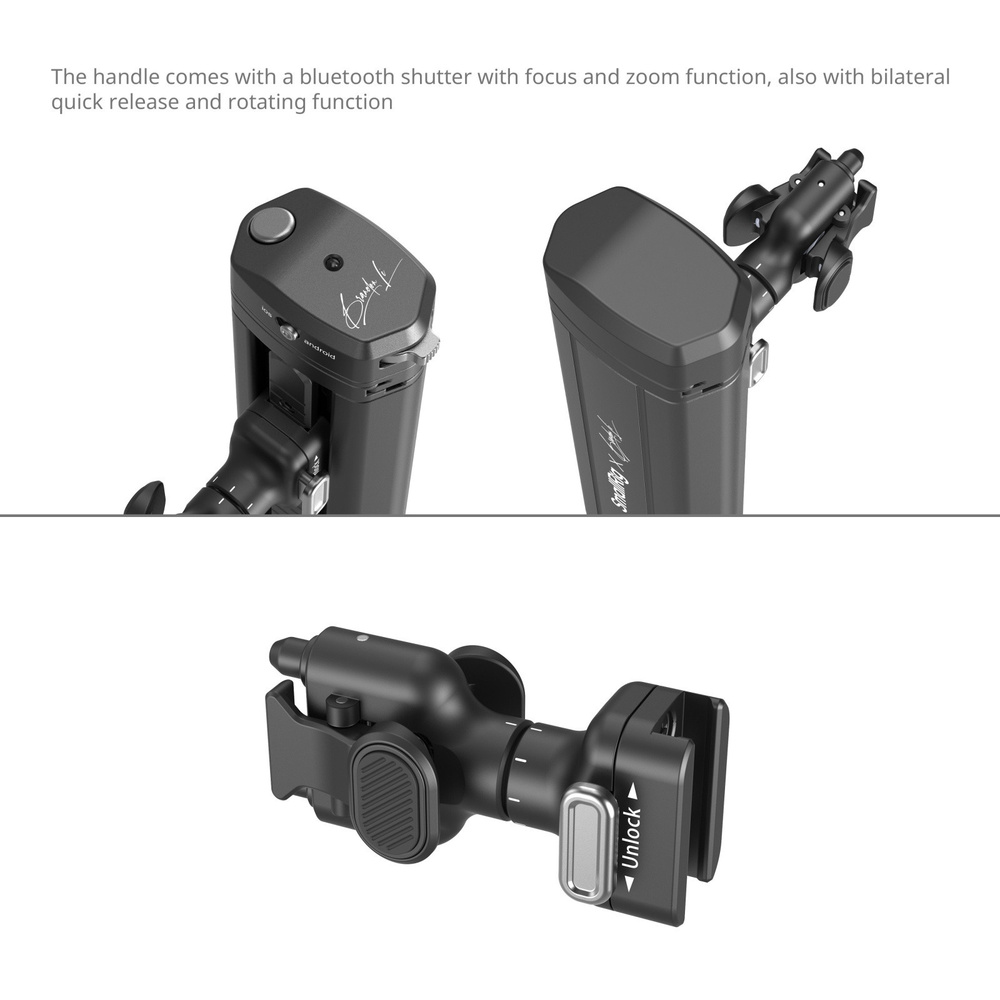

It includes a universal mobile video cage, a rotatable bilateral side handle with an M.2 SSD enclosure and wireless control, a second rotatable bilateral side handle, a 4-in-1 dock station with USB-C PD, USB-C 3.1 and USB-C 2.0, plus an Arca-Swiss quick release adapter. The wireless control works up to 10m, and the SSD enclosure supports M.2 2230, 2242, 2260 and 2280 drives.

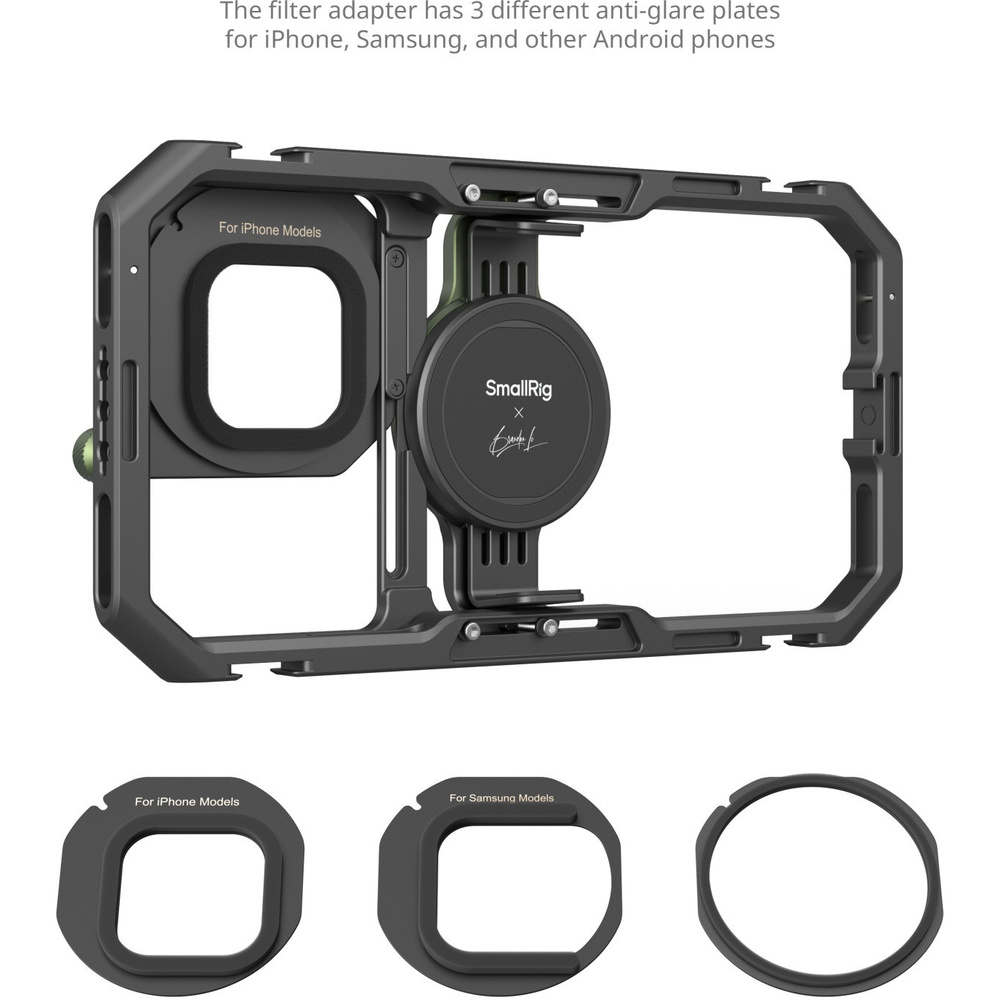

In use, the cage gives a mounting base for a phone, while the handles support handheld shooting and remote operation. The kit works with 67mm magnetic filter accessories and includes a 67mm magnetic filter adapter and a 67mm VND 2-32 filter. In the box are the phone cage, both handles, power bank holder, multifunctional data cable and Velcro ties.
Specifications
| Product Dimensions | 236 x 122 x 31mm / 9.3 x 4.8 x 1.2 inch (Cage); 148 x 81 x 42mm / 5.8 x 3.2 x 1.7inch (Handle) | |
|---|---|
| Package Dimensions | 295 x 130 x 225mm / 11.6 x 5.1 x 8.9 inch | |
| Product Weight | 1156 ± 50g / 40.8 ± 1.8oz | |
| Package Weight | 1571 ± 50g / 55.4 ± 1.8oz | |
| Material(s) | Aluminum Alloy, Plastic, Silicone, Magnet, Copper | |
| Specifications of M.2 SSD Enclosure | |
| Operating Protocol | NVMe V1.3 | |
| Built-in Interface | M.2 M-Key | |
| USB Protocol | USB 3.1-C | |
| Standby Power Consumption | 0.38W | |
| Compatible M.2 SSD | 2230, 2242, 2260, 2280 | |
| Transfer Rates | SuperSpeed (10Gbps) / Hi-Speed (5Gbps) / Full-Speed (480Mbps) / Low-Speed (12Mbps) | |
| Indicator Light Status | Blue LED Light | Always on (power on / sleep / safe ejection); flashes (read/write data) |
| Specifications of Wireless Remote Controller | |
| Operating Power Consumption | ≤3mW | |
| Standby Power Consumption | ≤0.04mW | |
| Battery | 145mAh | |
| Voltage | 3.7V | |
| Current | 2mA | |
| Operating Temperature | -30℃ to 60℃ / -22°F to 140°F | |
| Wireless Control Distance | 10.0m / 32.8ft | |
| Wireless Frequency | 2.4G Hz | |
| Specifications of 4-in-1 Dock Station | |
| Standby Power Consumption | ≤0.2W | |
| USB-C Ports | PD Charging / USB-C 3.1 / USB-C 2.0 x 2, Mobile Input | |
| PD Charging | 20V, 5A | |
| USB-C 3.1 | 5V,3A；USB-C 3.1 10Gbps, ≥750MB/s；USB-C 3.0 5Gbps, ≥350MB/s | |
| USB-C 2.0 | 5V, 2A；480Mbps, ≥35MB/s | |
| Operating Temperature | -20℃ to 50℃ / -4°F to 122°F | |
In the box
- Universal Phone Cage x 1
- 67mm Magnetic Filter Adapter x 1
- 67mm VND 2-32 (1-5 Stop) x 1
- Rotatable Bilateral Side Handle with M.2 SSD Enclosure and Wireless Control x 1
- Rotatable Bilateral Side Handle x 1
- 4-in-1 Dock Station (USB-C PD / USB-C 3.1 / USB-C 2.0) x 1
- Arca-Swiss Quick Release Adapter x 1
- Power Bank Holder x 1
- Multifunctional Data Cable x 1
- Velcro Ties x 1
- User Manual x 4
- Photography Bag x 1
