Description

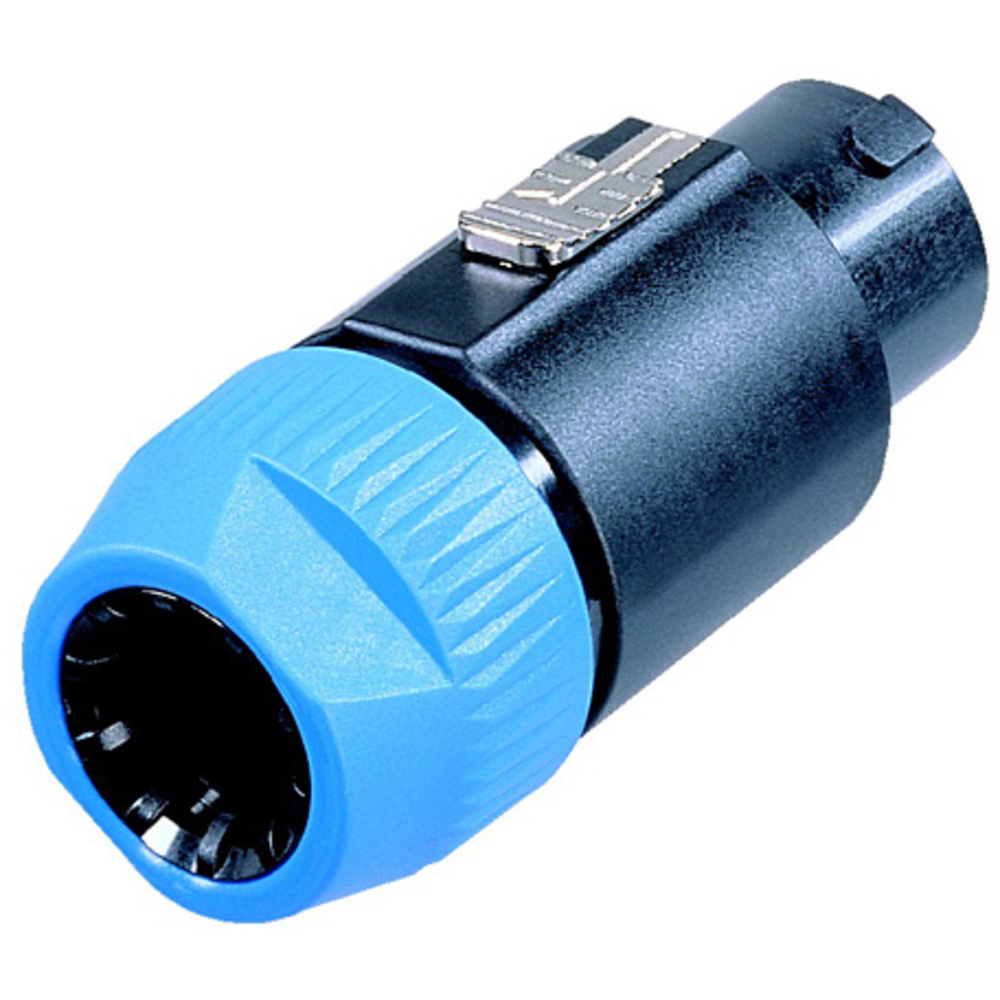

The Neutrik NL8FC Eight-Pole Cable Connector with Latch.
Highlights include quick lock latch, chuck type strain relief, screw type terminals, silver-plated brass contacts and polyamide shell.
Key specifications: connection type speakON; product type 8 pole cable connector, latch lock; gender female; rated current per contact 30 A rms continuous; rated voltage 250 V ac.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Product type | 8 pole cable connector, latch lock |
|---|---|
| Connection type | speakON |
| Gender | female |
| Rated current per contact | 30 A rms continuous |
| Rated current per contact | 40 A audiosignal, duty cycle 50 % |
| Rated voltage | 250 V ac |
| Cable outer diameter | 8 - 20 mm |
| Cable retention | ≥ 220 N |
| Lifetime | > 5000 mating cycles |
| Wire size | 4 mm² / 12 AWG |
| Operating temperature | -30 °C to +80 °C |
| Contact resistance | ≤ 3 mΩ (after lifetime) |
In the box
- NL8FC connector
