Description

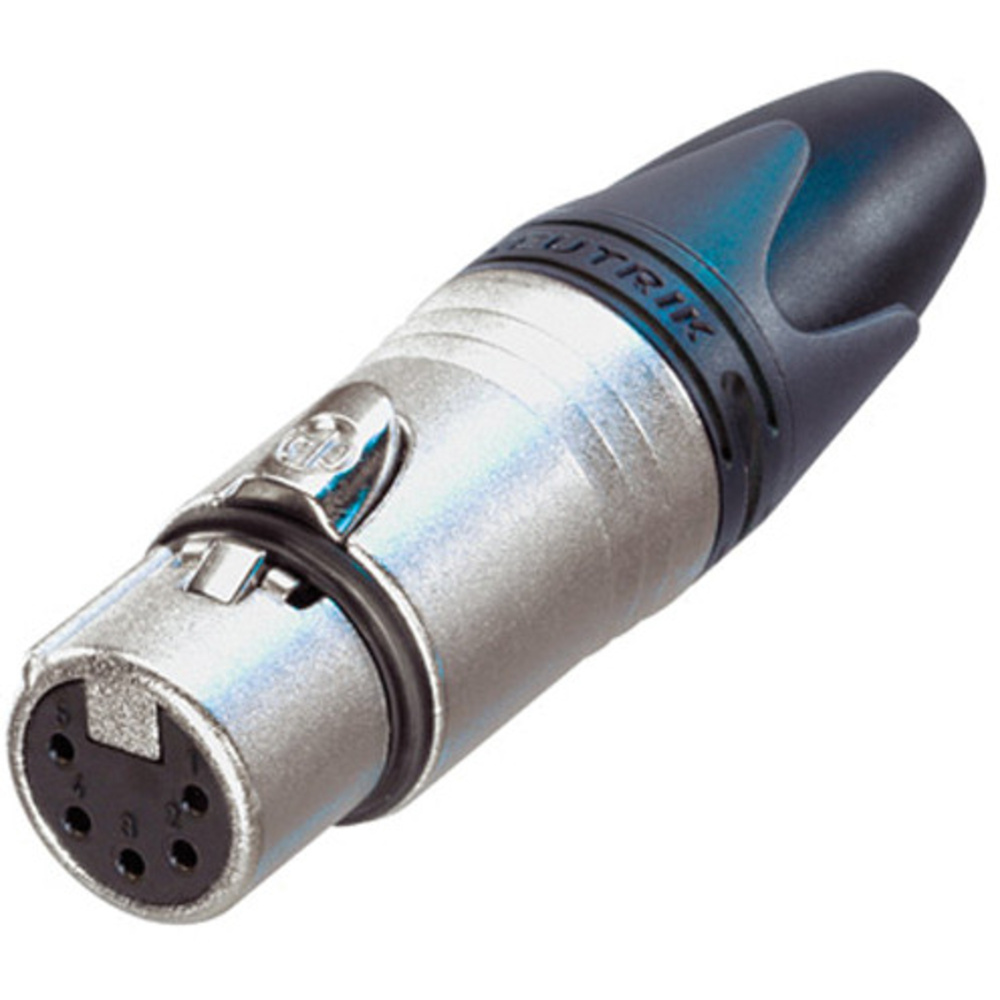

The Neutrik NC5FXX 5-Pole Female Cable Connector sits in our 5 Pin XLR range.
Highlights include latch lock, solder contacts, IP 40 protection class, lifetime > 1000 mating cycles and IEC 61076-2-103 compliant.
Key specifications: cable connector XLR 5-Pin Female; connection type XLR; product type 5-pole female cable connector; gender female; rated current per contact 7.5 A.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Product type | 5-pole female cable connector |
|---|---|
| Connection type | XLR |
| Gender | female |
| Rated current per contact | 7.5 A |
| Rated voltage | < 50 V |
| Capacitance between contacts | ≤ 7 pF |
| Contact resistance | ≤ 3 mΩ |
| Dielectric strength | 1.5 kVdc |
| Insulation resistance | > 10 GΩ (initial) |
| Cable O.D. | 3.5 - 8.0 mm |
| Wire size | max. 1.0 mm² / 18 AWG |
| Temperature range | -30 °C to +80 °C |
Product details
| Cable Connector | XLR 5-Pin Female |
|---|
