Description

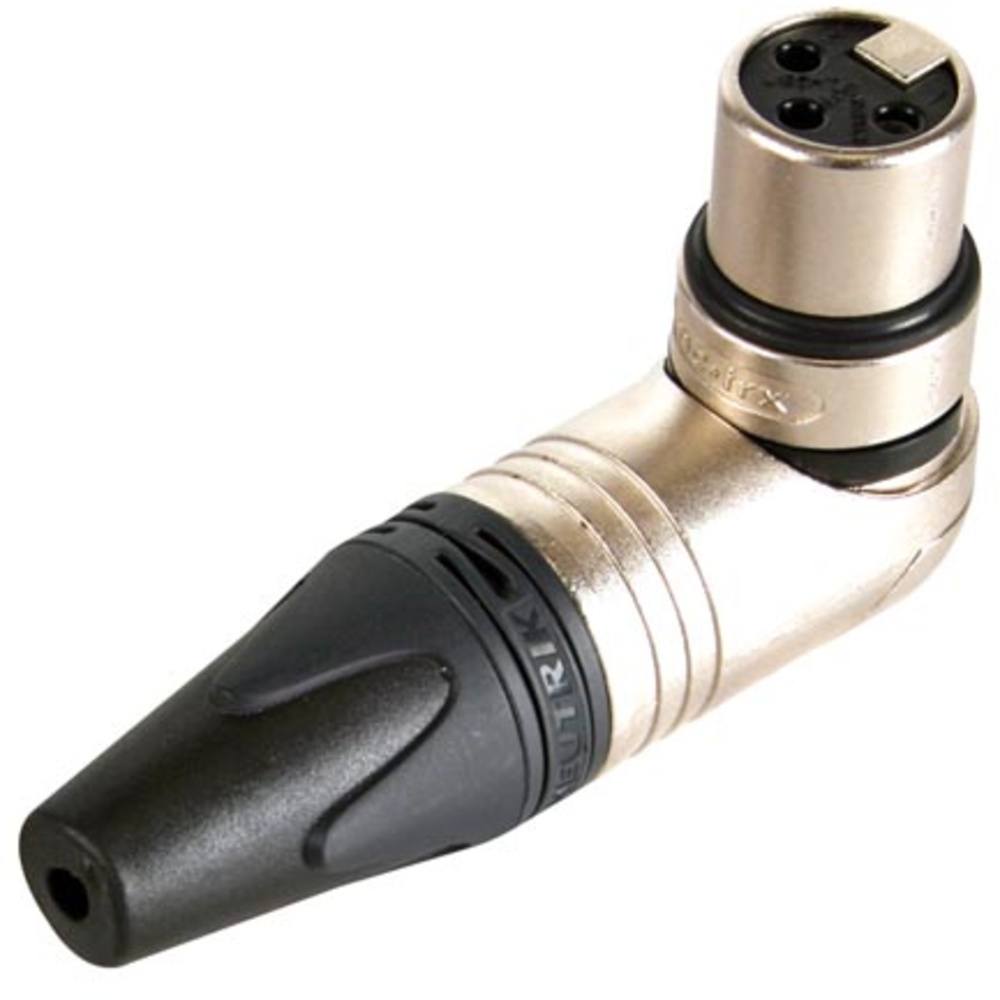

The Neutrik NC3FRX 3 Pole Right Angle XLR Female Cable Connector sits in our 3 Pin XLR range. Compatible with Cable diameters from 3.5 to 8.0 mm.
Highlights include Right angle 3 pole female XLR connector, solder contacts, nickel shell plating, silver contact plating and meets IEC 61076-2-103.
Key specifications: cable connector XLR 3-Pin Female; connection type XLR; compatible with Cable diameters from 3.5 to 8.0 mm; product type 3 pole right angle female cable connector; gender female.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Product type | 3 pole right angle female cable connector |
|---|---|
| Connection type | XLR |
| Gender | female |
| Rated current per contact | 16 A |
| Rated voltage | < 50 V |
| Cable outer diameter | 3.5 - 8.0 mm |
| Wire size max | 2.5 mm² |
| Wire size max | 14 AWG |
| Contact resistance | ≤ 3 mΩ |
| Dielectric strength | 1.5 kVdc |
| Protection class | IP 40 |
| Temperature range | -30 °C to +80 °C |
Product details
| Cable Connector | XLR 3-Pin Female |
|---|---|
| Compatible With | Cable diameters from 3.5 to 8.0 mm |
