Description

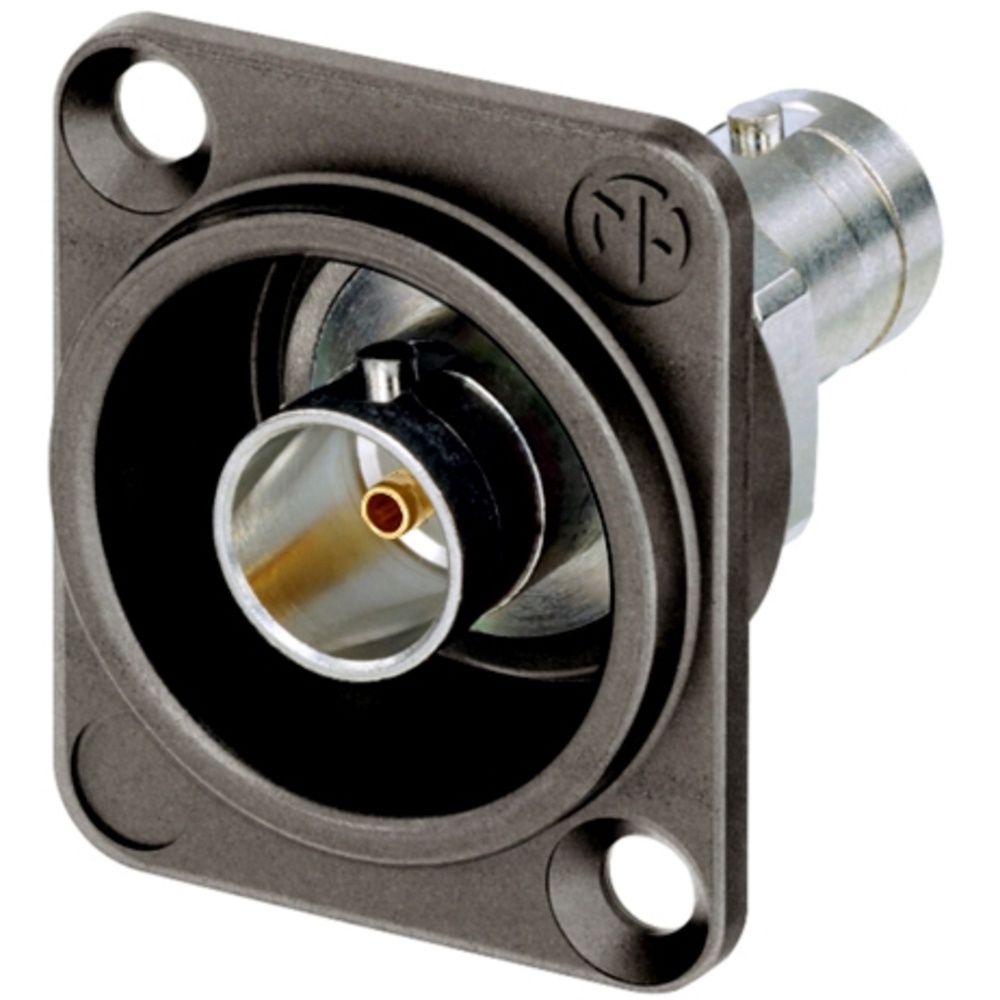

The Neutrik NBB75DFGX Grounded UHD BNC Feedthrough Receptacle in D-Shape Housing sits in our BNC range. Compatible with UHD, SDI, Video, AES/EBU, Composite, YUV, RGB, RGBH, RGBHV.
Highlights include grounded D-shape housing, front mounting, bayonet locking device, UHD, SDI and Video signal support and antraloy-plated housing.
Key specifications: connection type BNC 75 Ω; gender female; impedance 75 Ω; rated voltage < 50 V; dielectric strength 1.5 kVdc.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Connection type | BNC 75 Ω |
|---|---|
| Gender | female |
| Impedance | 75 Ω |
| Rated voltage | < 50 V |
| Dielectric strength | 1.5 kVdc |
| Insulation resistance | > 5 GΩ |
| Contact resistance (inner) | ≤ 3 mΩ |
| Contact resistance (outer) | ≤ 2 mΩ |
| VSWR | ≤1.06 / >30 dB up to 6 GHz |
| Insertion force | < 25 N |
| Lifetime | > 1000 mating cycles |
| Temperature range | -30 °C to +85 °C |
Product details
| Compatible With | UHD, SDI, Video, AES/EBU, Composite, YUV, RGB, RGBH, RGBHV |
|---|
In the box
- Neutrik NBB75DFGX Grounded UHD BNC Feedthrough Receptacle in D-Shape Housing
