Description

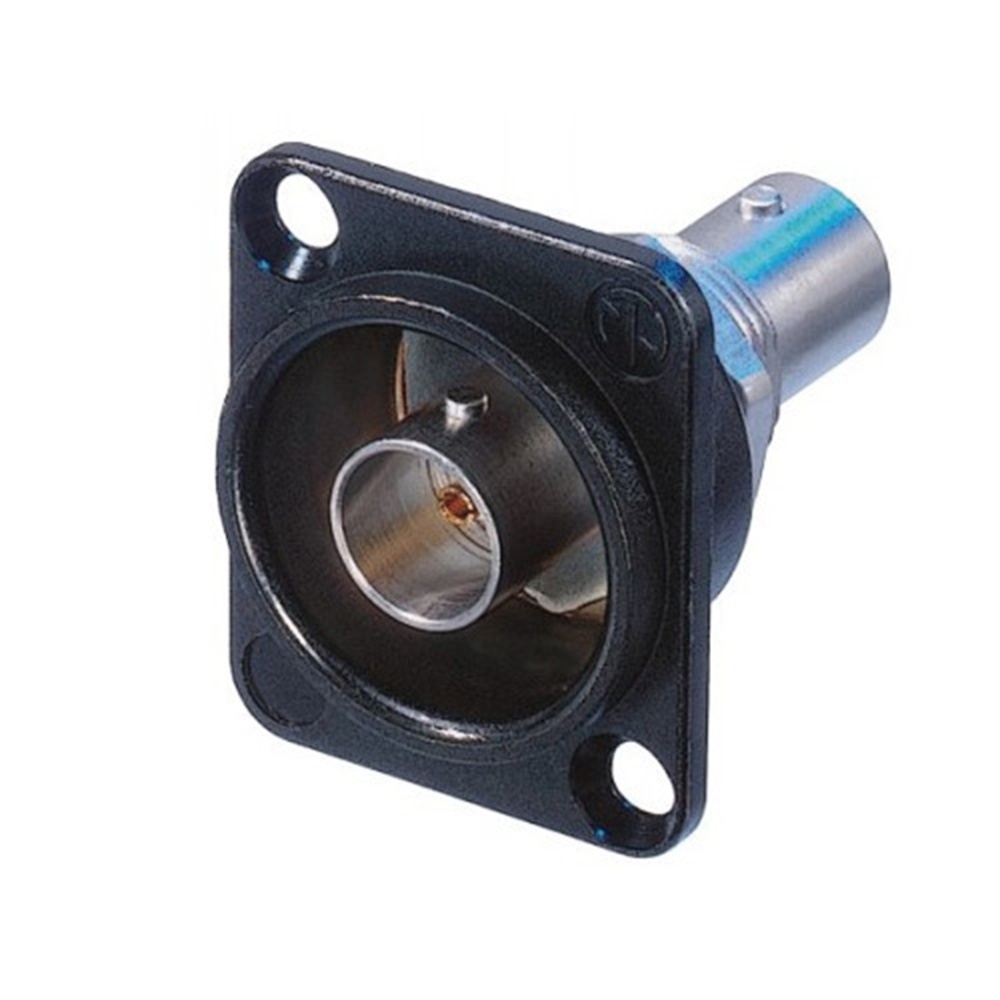

The Neutrik BNC D-Shape Housing Chassis Connector (Grounded, Feedthrough, Black) sits in our BNC range. Compatible with HD, SDI, Video, AES/EBU, Composite, YUV, RGB, RGBH, RGBHV signals.
Highlights include grounded panel mount, feedthrough chassis connector, D-shape housing for flush mounting, gold plated cage type center contact and true 75 Ω design.
Key specifications: connection type BNC 75 Ω; product title NBB75DFGB; gender female; impedance 75 Ω; rated voltage <50 V.
Manufacturer model number NBB75DFGB.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Product title | NBB75DFGB |
|---|---|
| Connection type | BNC 75 Ω |
| Gender | female |
| Impedance | 75 Ω |
| Rated voltage | <50 V |
| Dielectric strength | 1.5 kVdc |
| Contact resistance (inner) | ≤ 3 mΩ |
| Contact resistance (outer) | ≤ 2 mΩ |
| Insertion force | < 25 N |
| Lifetime | > 1000 mating cycles |
| Temperature range | -30 °C to +85 °C |
| Housing material | Zinc diecast (ZnAl4Cu1) with black chrome plating |
Product details
| Compatible With | HD, SDI, Video, AES/EBU, Composite, YUV, RGB, RGBH, RGBHV signals |
|---|
