Description

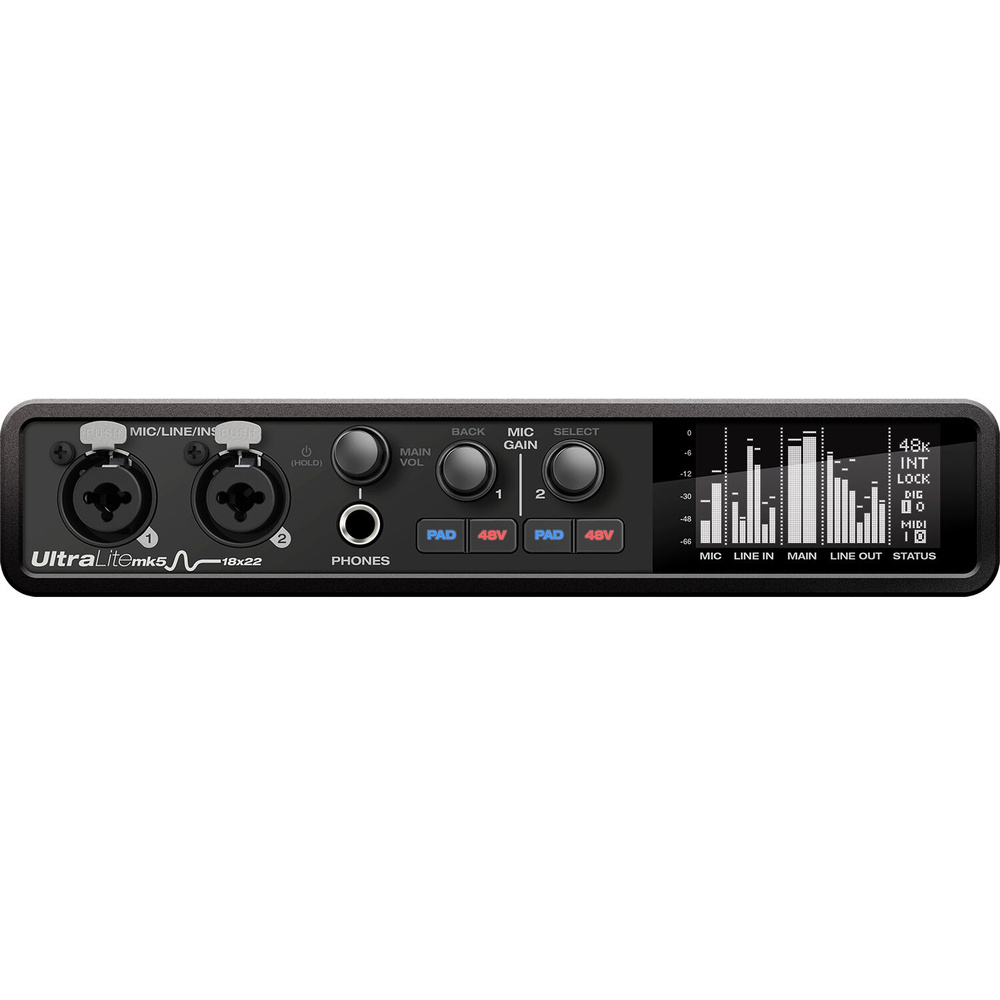

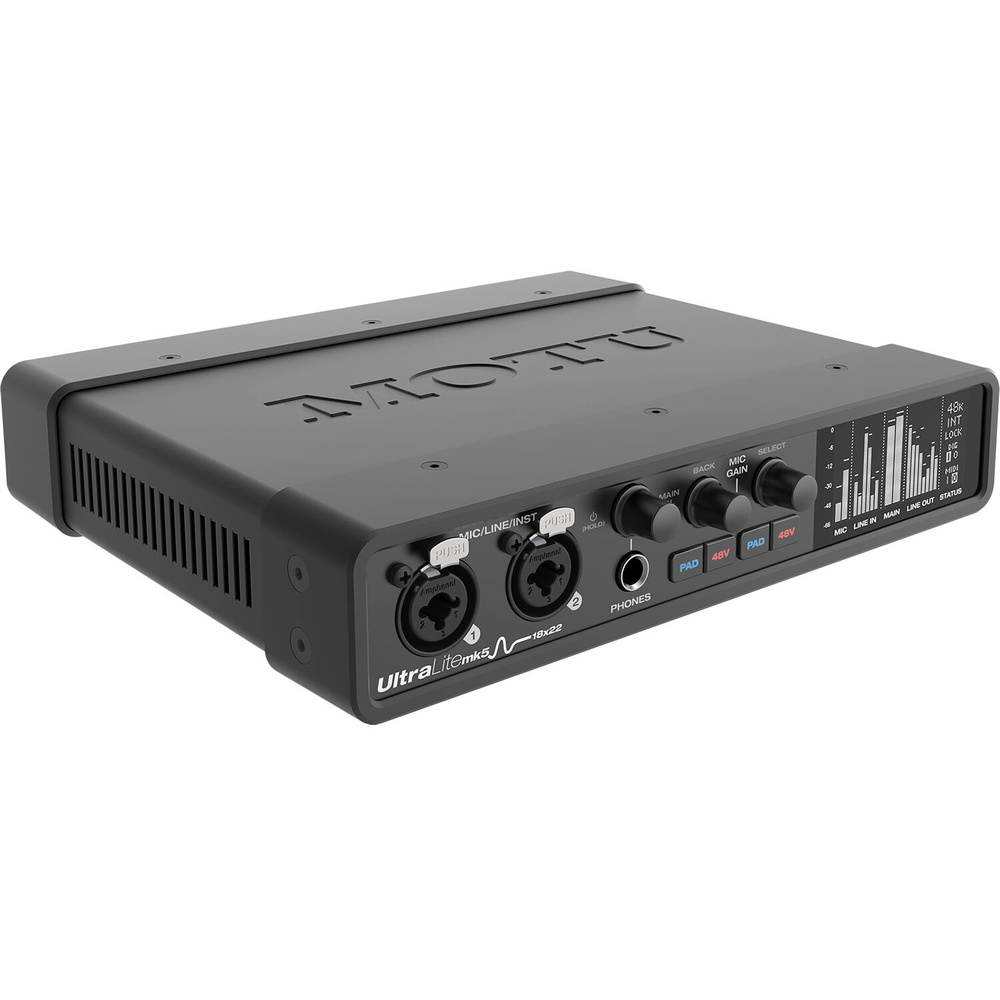

The MOTU UltraLite-mk5 Desktop 18x22 USB Type-C Audio/MIDI Interface sits in our MIDI Interfaces range.
Highlights include musicians, podcasters, and producers, USB Type-C connectivity, 2 Mic/Line/Instrument preamps, 6 line in, 1 headphone out, 10 1/4" line outs and high-Performance 24-Bit / 192 kHz AD/DA.
Key specifications: weight 1.3 kg; dimensions 21.8 x 17.5 x 4.45 cm; form factor Tabletop; display 1 x Monochrome OLED; max sample Rate/Resolution 192 kHz / 24-Bit.
In the box: MOTU UltraLite-mk5 Desktop 18x22 USB Type-C Audio/MIDI Interface, external Power supply, CueMix 5 software (Download), MOTU Performer Lite (Download) and 6GB of Loops and Sounds from Big Fish Audio, LucidSamples, Loopmasters, and MOTU (Download). Manufacturer model number MOTU_ULMK5.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Form Factor | Tabletop |
|---|---|
| Display | 1 x Monochrome OLED |
| Channels of I/O | Analogue: 8 Inputs / 12 Outputs Digital: 10 Inputs / 10 Outputs |
| Max Sample Rate/Resolution | 192 kHz / 24-Bit |
| Number of Mic Preamps | 2 |
| Input Level Adjustment | 2 x Knob |
| Expansion Slots | None |
| Pad | Mic: -20 dB (Switchable per Channel) |
| Gain/Trim Range | Mic Inputs: Up to +74 dB |
| High-Pass Filter | None |
| Solo/Mute | None |
| Connectivity | |
| Analogue Audio I/O | 2 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input (Front Panel) 6 x 1/4" TRS Balanced Line Input 10 x 1/4" TRS Balanced Line Output (DC-Coupled) 1 x 1/4" TRS Unbalanced Headphone Output (Front Panel) |
| Phantom Power | 48 V, Selectable On/Off (Selectable on Individual Inputs) |
| Digital Audio I/O | 1 x TOSLINK Optical ADAT / S/PDIF Input 1 x TOSLINK Optical ADAT / S/PDIF Output 1 x RCA Coaxial S/PDIF Input 1 x RCA Coaxial S/PDIF Output |
| Host Connection / USB | 1 x USB Type-C (Class-Compliant USB 2.0) |
| USB (Non-Host) | None |
| Sync I/O | None |
| Network I/O | None |
| MIDI I/O | 1 x DIN 5-Pin Input 1 x DIN 5-Pin Output |
| Wireless Connectivity | None |
| Performance | |
| Max Output Level | Headphone Outputs: +14 dBu |
| Impedance | Line/Hi-Z Inputs: 1 Megohm |
| Dynamic Range | Mic Inputs: 115 dB (A-Weighted) Line Inputs: 120 dB (A-Weighted) Line Outputs: 125 dB (A-Weighted) Headphone Outputs: 118 dB (A-Weighted) |
| THD+N | Line Inputs: -114 dB / 0.0002% (Unweighted) Line Outputs: -114 dB / 0.0002% (Unweighted) Headphone Outputs: -110 dB / 0.0003% (Unweighted) |
| EIN | Mic Inputs: -129 dBu |
| Digital Audio | |
| Sample Rates | 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz |
| Sample Rate Conversion | None |
| Bit Depths | 24-Bit |
| Latency | 2.4 ms at 96 kHz (Dependant on Buffer Size, Input to Output) |
| Sync Sources | ADAT, Internal, S/PDIF |
| Memory Card Slot | None |
| Compatibility | |
| OS Compatibility | macOS 10.11 or Later Windows 10 iOS 9 or Later |
| Included Software | Digital Performer Lite |
| Compatible Software (Not Included) | Any Core Audio (Mac) Compliant Software |
| Included Plug-Ins | None |
| Supported Drivers/API & Plug-Ins | macOS Class-Compliant (No Driver Needed) Windows Driver Downloadable from Manufacturer |
| Processor Requirement | Mac: Intel Core i3 or Better PC: Intel Core i3 or Better AMD |
| RAM Requirements | 4 GB, 8 GB Recommended |
| Storage Requirements | 500 GB |
| Mobile Device Compatibility | iPad iPhone iPod Touch |
| Required Hardware | Available USB 2.0 Port |
| Internet Connection | Required for Registration, Software/Driver Download |
| Power | |
| Power Requirements | AC/DC Power Adapter (Included) |
| AC/DC Power Adapter | 12 to 18 VDC at 1 A, Centre-Positive or Negative (Included) |
| Physical | |
| Rackmount Size | 1 RU (with Optional Hardware, 1/2-Rack) |
| Dimensions | 21.8 x 17.5 x 4.45 cm |
| Weight | 1.3 kg |
In the box
- MOTU UltraLite-mk5 Desktop 18x22 USB Type-C Audio/MIDI Interface
- External Power Supply
- CueMix 5 Software (Download)
- MOTU Performer Lite (Download)
- 6GB of Loops and Sounds from Big Fish Audio, LucidSamples, Loopmasters, and MOTU (Download)
