Description

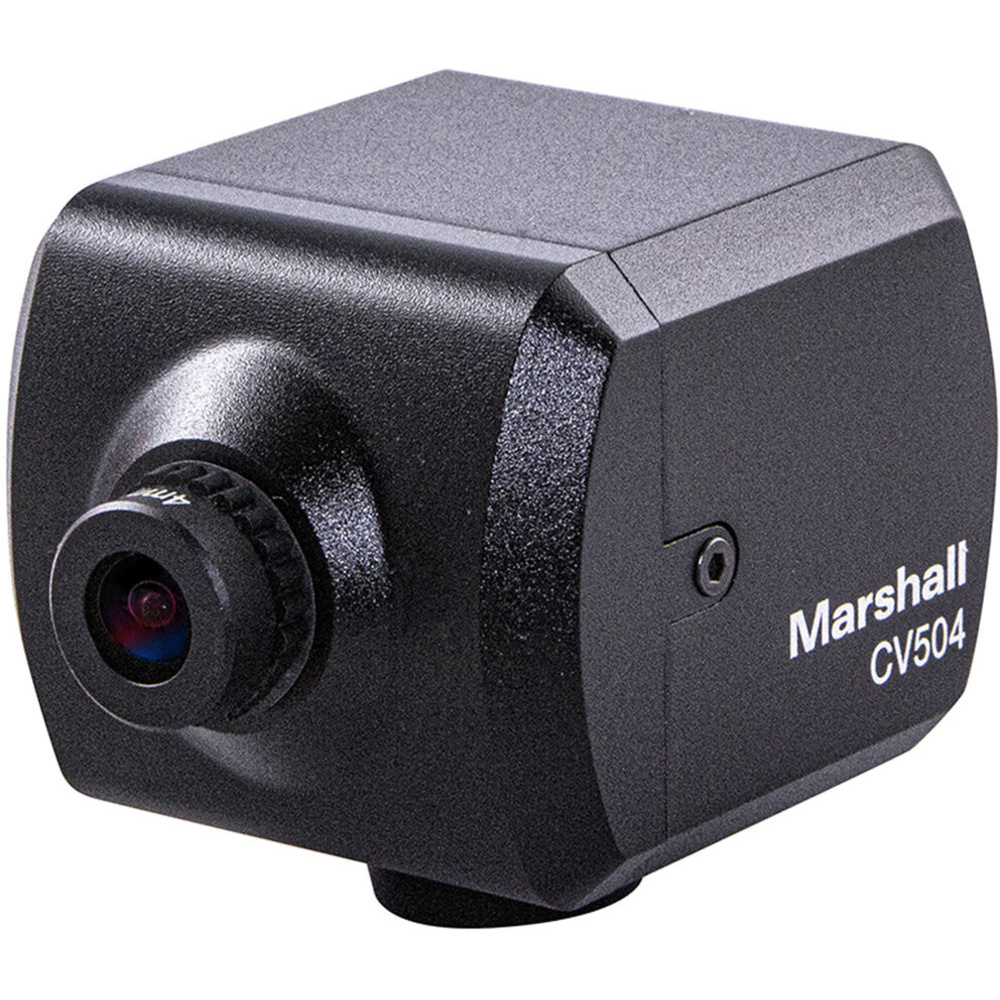

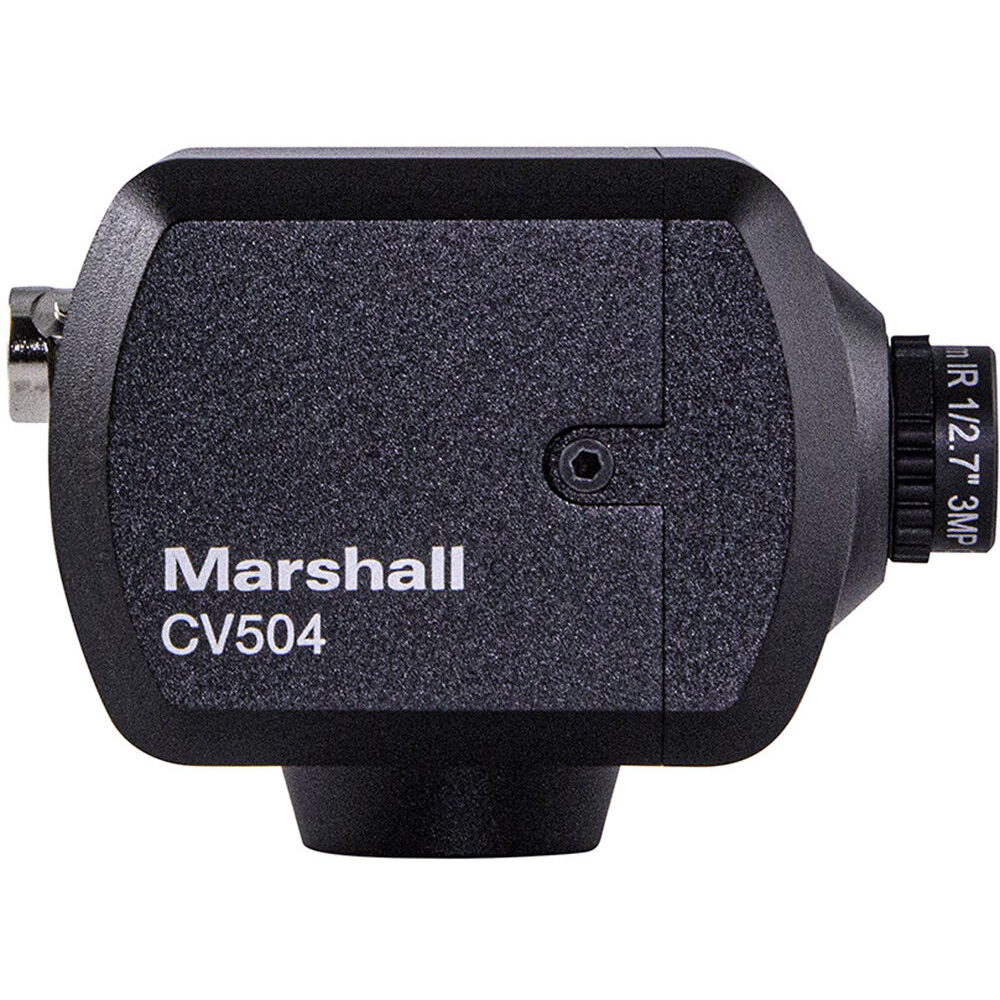

The Marshall Electronics CV504 Full HD Micro POV Camera is an industrial camera. Compatible with Marshall M12 Lenses | |.
Highlights include compact POV Camera, 1/2.8" Sony CMOS sensor, 85° horizontal field of view, up to 1080p60 via 3G-SDI and IR mode for low-light environments.
Key specifications: weight 4.8 oz / 136 g | |; dimensions 2.2 x 1.7 x 1.6" / 55 x 44 x 40 mm | |; compatibility Marshall M12 Lenses | |; material of construction Aluminium Alloy | |; lens type Interchangeable M12 | |.
In the box: Marshall Electronics CV504 full HD micro POV Camera, Marshall Electronics 4.0mm f/1.8 8MP M12 lens and locking hirose cable.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| General | |
|---|---|
| Compatibility | Marshall M12 Lenses | | |
| Image Sensor | Sony 1/2.8" IMX CMOS Solid-State Image Sensor with Square Pixel Array | | |
| Colour | 10-Bit, 4.2.2, ITU BT.709 | | |
| Lens Type | Interchangeable M12 | | |
| Lens Focal Length | 4.0mm | | |
| Angle of View | 85° (Horizontal) | | |
| Electronic Shutter | 1/30~1/10000 | | |
| Inputs / Outputs | |
| USB I/O | 1 x Micro-USB Female Input | | |

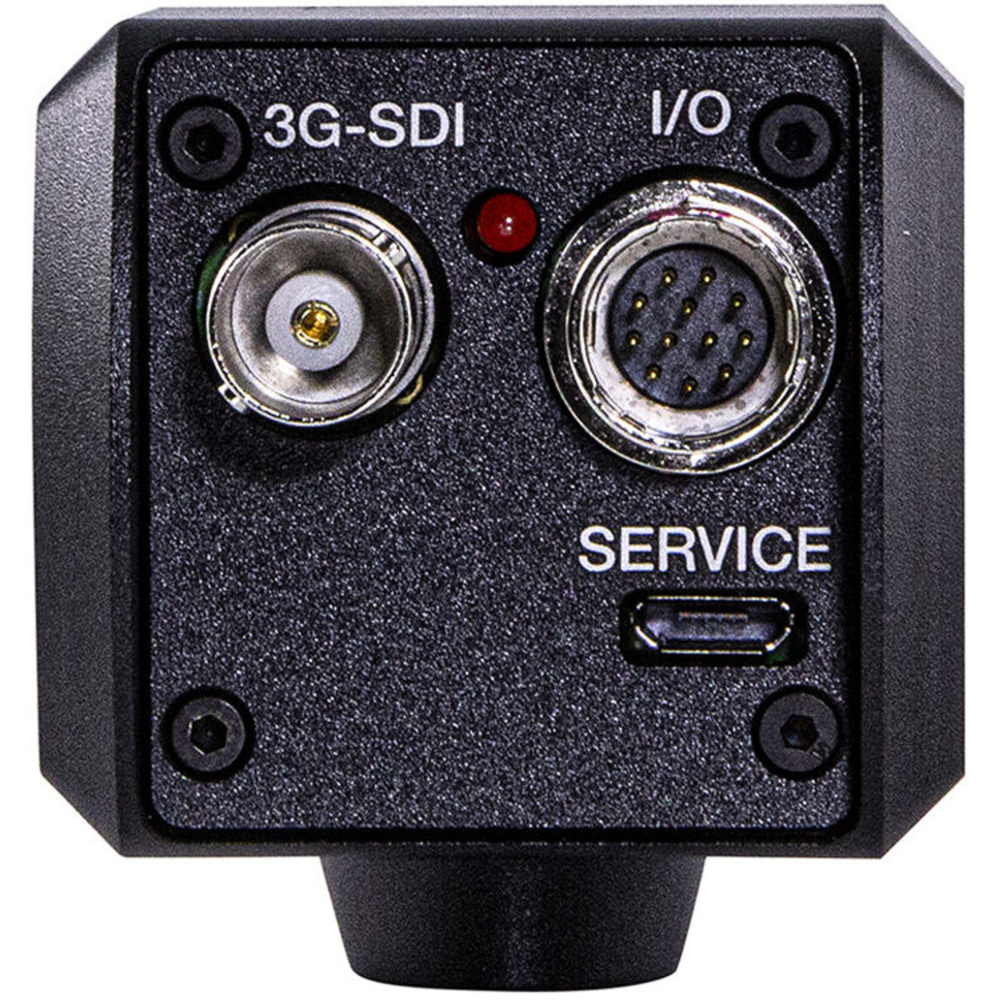

| Video I/O | 1 x BNC Output | | |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Mic Input | | |
| Video Output | HD-SDI: 1920 x 1080p @ 23.976, 24, 25, 29.97, 30 fps | 1920 x 1080i @ 50, 59.94, 60 fps | 1280 x 720p @ 50, 59.94, 60 fps 3G-SDI: 1920 x 1080p @ 50, 59.94, 60 fps |
| Control Protocol | Visca over RS-485 Sony Visca Protocol, Camera ID#, Baud Rate 2400 to 115200 bps | | |
| Input Connections | 12-Pin Locking Hirose with Power In, Audio In, RS-485, and OSD Joystick Control | | |
| Power | |
| Power Source | Proprietary Interface | | |
| DC Input Power | 7 to 15 VDC | | |
| Power Consumption | 6 W (Maximum) 2.64 W (Typical) | | |
| Environmental | |
| Operating Temperature | 14 to 122°F / -10 to 50°C | | |
| Physical | |
| Material of Construction | Aluminium Alloy | | |
| Cable Length | Not Specified by Manufacturer | | |
| Dimensions | 2.2 x 1.7 x 1.6" / 55 x 44 x 40 mm | | |
| Weight | 4.8 oz / 136 g | | |
In the box
- Marshall Electronics CV504 Full HD Micro POV Camera
- Marshall Electronics 4.0mm f/1.8 8MP M12 Lens
- Locking Hirose Cable
