Description

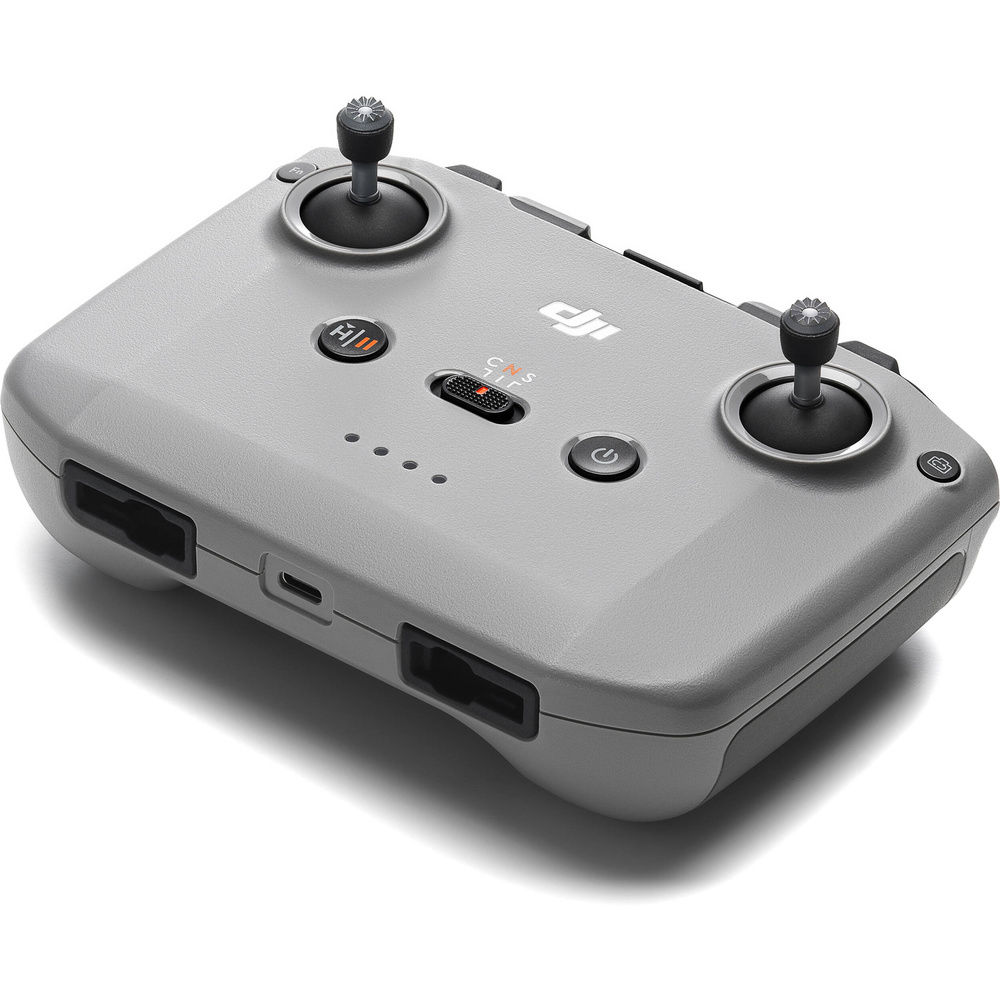

The DJI RC-N3 Controller is a remote controller for DJI drones that use a phone for live view and app-based control. It suits pilots who want physical sticks and a simple handset layout rather than an integrated screen. It is designed for use with compatible DJI drones and the DJI Fly app.
It supports DJI Neo, Mini 4 Pro and Air 3, and uses 2.4 GHz and 5.8 GHz dual-band transmission. The built-in battery provides up to 3.5 hours of use without charging a mobile device, or up to 1.5 hours when charging a phone. It charges in about 2 hours, uses a 2600 mAh battery, and weighs 320 g.

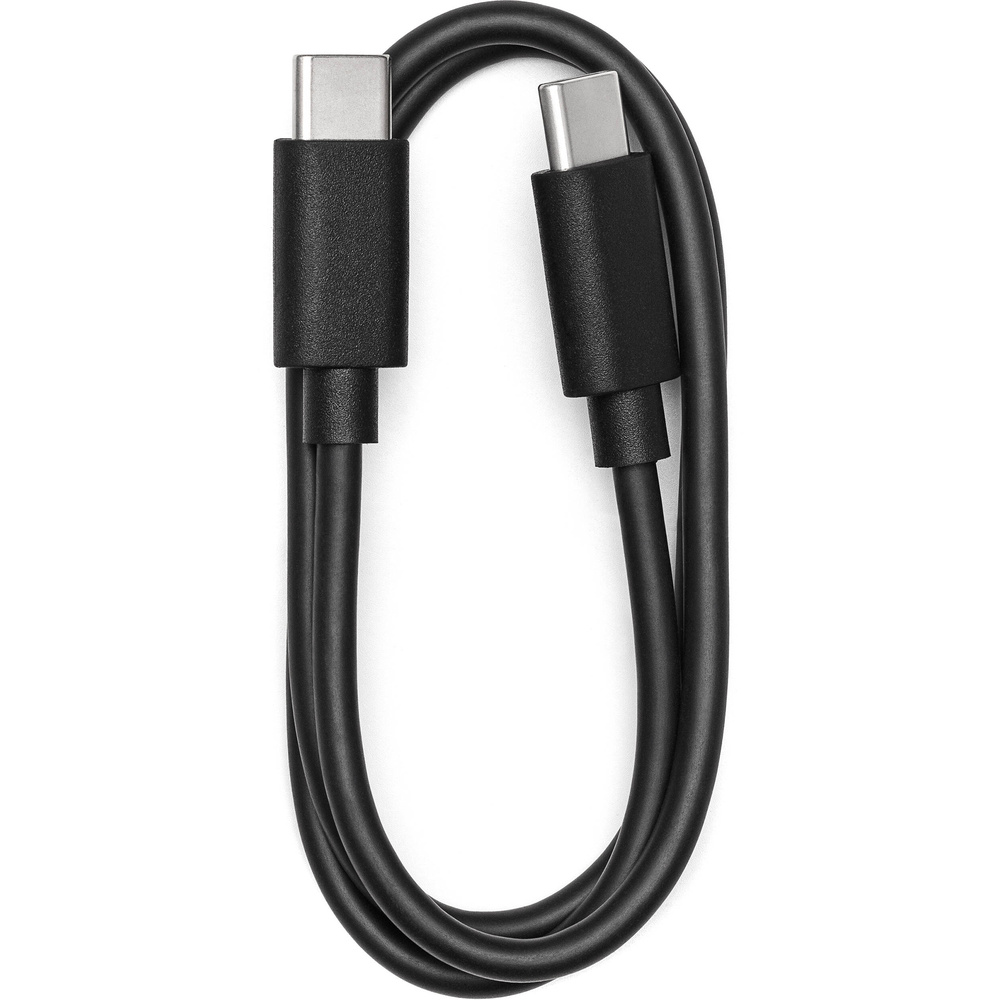

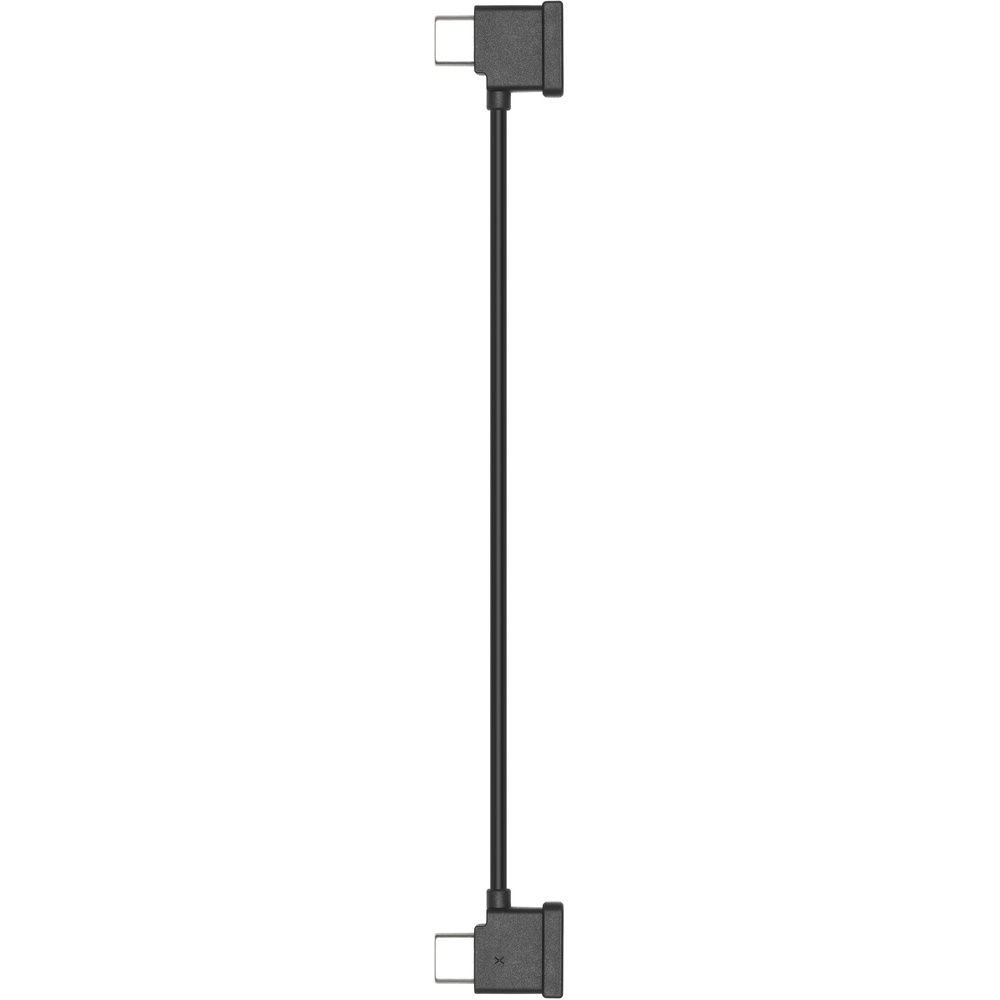

In use, the controller pairs with a smartphone and shows the drone's HD video feed on the phone display through the DJI Fly app. It suits Android and iOS phones up to 18.0 x 8.6 x 1.0 cm. The box includes the DJI RC-N3 Controller, a USB-C RC cable and a Lightning RC cable.
Specifications
| General | |
|---|---|
| Compatibility | DJI Neo / Mini 4 Pro / Air 3 |
| Supported Smartphone Sizes | 7.1 x 3.4 x 0.4" / 18.0 x 8.6 x 1.0 cm (L x W x H) |
| Run Time | Without Charging Any Mobile Device: Up to 3.5 Hours When Charging a Mobile Device: Up to 1.5 Hours |
| Charging Time | Approximately 2 Hours |
| Temperature | Charging Temperature: 14 to 104°F / 5 to 40°C |
| Wireless | |
| Mobile App Compatible | Yes: Android & iOS App Name: DJI Fly |
| Operating Frequency | 2.400 - 2.4835 GHz 5.170 - 5.250 GHz 5.725 - 5.850 GHz |
| Transmission | Power (EIRP) (2.4 GHz): (FCC) <33 dBm, (COE/SRRC/MIC) <20 dBm Power (EIRP) (5.1 GHz): (COE) <23 dBm Power (EIRP) (5.8 GHz): (FCC) <33 dBm, (COE) 14 dBm, (SRRC) <30 dBm |
| Power | |
| Power Source | Battery (Built-In) |
| DC Input Power | 5 VDC at 2 A |
| Battery Capacity | 2600 mAh |
| Environmental | |
| Operating Temperature | 14 to 104°F / -10 to 40°C |
| Physical | |
| Dimensions | 5.9 x 4.1 x 1.8" / 150 x 104.2 x 45.2 mm |
| Weight | 11.3 oz / 320 g |
Product details
| Series/Compatibility | Air |
|---|
In the box
- DJI RC-N3 Controller
- USB-C RC Cable
- Lightning RC Cable
