Description
The DJI Focus Pro Motor is a gimbal accessory.
Highlights include focus motor for select RS gimbals, 30% speed increase, low latency, 524.9' transmission distance and 15mm rod mount configuration.
Key specifications: mounting 1x 15mm Rod 1x 1/4"-20 Screw 1x Rod Mount Kit; weight 4.3 oz / 123 g; dimensions 3.9 x 2.4 x 1.3" / 100 x 61 x 34 mm; max transmission distance 524.9' / 160 m; gear specs 30 Teeth, 0.8 MOD.
A motorised gimbal levels and smooths hand-held movement across three axes. In the box: DJI Focus Pro Motor, rod mount kit, focus Gear strip, multicamera USB-C control cable (11.8"), 15mm Rod and 1/4"-20 Screw and 1 more items. Manufacturer model number 190021096509.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| General | |
|---|---|
| Compatibility | DJI RS 3 Gimbal Stabiliser / RS 4 Gimbal Stabiliser / RS 3 Pro Gimbal Stabiliser / RS 4 Pro Gimbal Stabiliser / Focus Pro Grip / Focus Pro Hand Unit / Ronin 4D Flex |
| Max Transmission Distance | 524.9' / 160 m |
| Gear Specs | 30 Teeth, 0.8 MOD |
| Max Torque | 0.6 Nm |
| Speed | 300 rpm (Max) |
| Inputs / Outputs | |
| USB I/O | 1 x USB-C Female Input |
| Wireless | |
| Wireless | 2.4 GHz Radio/RF *Built-In |
| Power | |
| Power Source | USB |
| DC Input Power | 6.6 to 17.2 VDC |
| Environmental | |
| Certifications | COE, FCC |
| Operating Temperature | -4 to 113°F / -20 to 45°C |
| Physical | |
| Mounting | 1x 15mm Rod 1x 1/4"-20 Screw 1x Rod Mount Kit |
| Cable Length | 11.8" / 30 cm |
| Dimensions | 3.9 x 2.4 x 1.3" / 100 x 61 x 34 mm |
| Weight | 4.3 oz / 123 g |
Product details
| Series/Compatibility | Ronin |
|---|

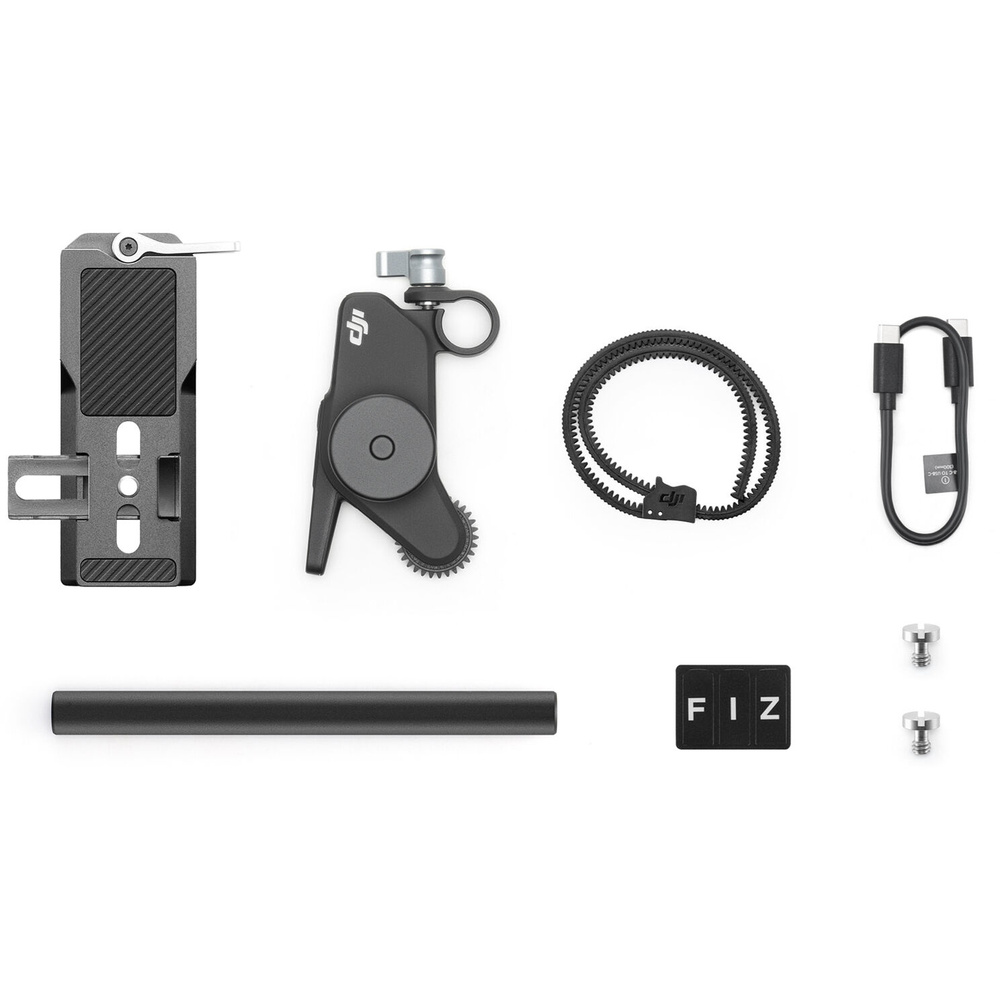

In the box
- DJI Focus Pro Motor
- Rod Mount Kit
- Focus Gear Strip
- Multicamera USB-C Control Cable (11.8")
- 15mm Rod
- 1/4"-20 Screw
- FIZ Sticker
