Description
The DJI Focus Pro Creator Combo is a gimbal accessory. Compatible with DJI RS 3 Pro / RS 4 Pro / Focus Pro Grip.
Highlights include for DJI RS 3 and RS 4 Pro gimbals, focus Pro LiDAR, focus Pro motor, focus Pro grip and carrying case.
Key specifications: mounting 1x Cold Shoe 1x 1/4"-20 Thread; battery type 1x Internal Rechargeable; weight 4.9 oz / 140 g; dimensions 2.7 x 2.2 x 1" / 68 x 57 x 25 mm; compatibility DJI RS 3 Pro / RS 4 Pro / Focus Pro Grip.
A motorised gimbal levels and smooths hand-held movement across three axes. In the box: DJI Focus Pro LiDAR, DJI Focus Pro Grip, DJI Focus Pro Motor and carrying case. Manufacturer model number 190021106970.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| General | |
|---|---|
| Compatibility | DJI RS 3 Pro / RS 4 Pro / Focus Pro Grip |
| Resolution | 1920 x 1440 |
| Frame Rate | 30 fps |
| Field of View | 57.4° (Horizontal) 44.6° (Vertical)<br:70.1° (Diagonal) |
| Range | 1.6 to 65.6' / 0.5 to 20 m |
| Inputs / Outputs | |
| USB I/O | 2 x USB-C Female Input |
| Power | |
| Power Source | USB |
| DC Input Power | 6.6 to 17.2 VDC |
| Power Consumption | 6.3 W (Typical) 6.8 W (Maximum) |
| Environmental | |
| Environmental Protection | No |
| Operating Temperature | -4 to 113°F / -20 to 45°C |
| Physical | |
| Mounting | 1x Cold Shoe 1x 1/4"-20 Thread |
| Colour | Black |
| Cable Length | 11.8" / 30 cm |
| Dimensions | 2.7 x 2.2 x 1" / 68 x 57 x 25 mm |
| Weight | 4.9 oz / 140 g |
| General | |
| Compatibility | DJI Focus Pro Motor / RS 4 Pro Gimbal Stabiliser / RS 3 Pro Gimbal Stabiliser |
| Display | |
| Display Size | 1.8" |
| Touchscreen | Yes |
| Inputs / Outputs | |
| USB I/O | 4 x USB-C Female Input |
| Wireless | |
| Wireless | 2.4 GHz Radio/RF / Bluetooth *Built-In |
| Power | |
| Power Source | Battery |
| Battery Type | 1x Internal Rechargeable |
| DC Input Power | 6.6 to 8.4 VDC |
| Physical | |
| Mounting | 1x NATO Clamp 2x NATO Rail 1x M4 Screw 1x 1/4"-20 Screw |
| Cable Length | 15.7" / 40 cm |
| Dimensions | 6.4 x 2.9 x 2.3" / 162 x 73 x 59 mm |
| Weight | 17 oz / 482 g |
| General | |
| Compatibility | DJI RS 3 Gimbal Stabiliser / RS 4 Gimbal Stabiliser / RS 3 Pro Gimbal Stabiliser / RS 4 Pro Gimbal Stabiliser / Focus Pro Grip / Focus Pro Hand Unit / Ronin 4D Flex |
| Max Transmission Distance | 524.9' / 160 m |
| Gear Specs | 30 Teeth, 0.8 MOD |
| Max Torque | 0.6 Nm |
| Speed | 300 rpm (Max) |
| Inputs / Outputs | |
| USB I/O | 1 x USB-C Female Input |
| Wireless | |
| Wireless | 2.4 GHz Radio/RF *Built-In |
| Environmental | |
| Certifications | COE, FCC |
| Physical | |
| Mounting | 1x 15mm Rod 1x 1/4"-20 Screw 1x Rod Mount Kit |
| Dimensions | 3.9 x 2.4 x 1.3" / 100 x 61 x 34 mm |
| Weight | 4.3 oz / 123 g |
Product details
| Series/Compatibility | Ronin |
|---|
In the box

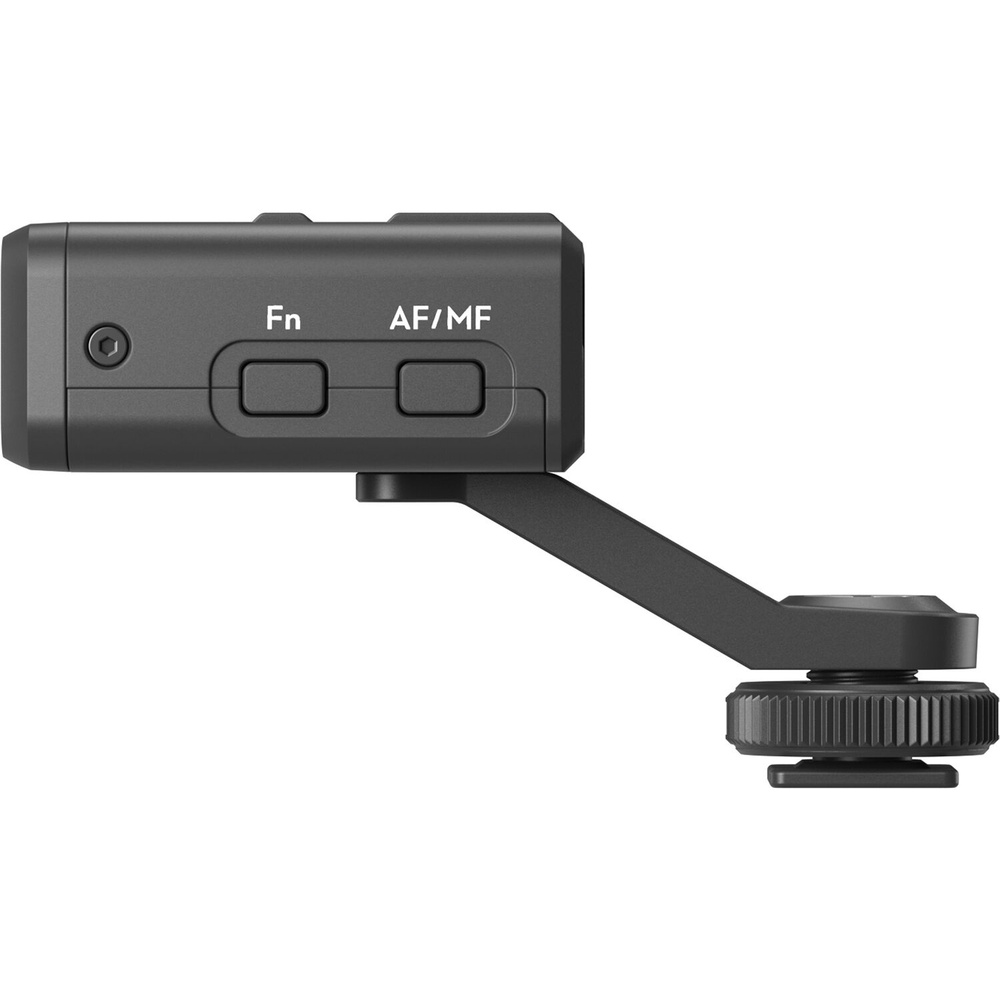

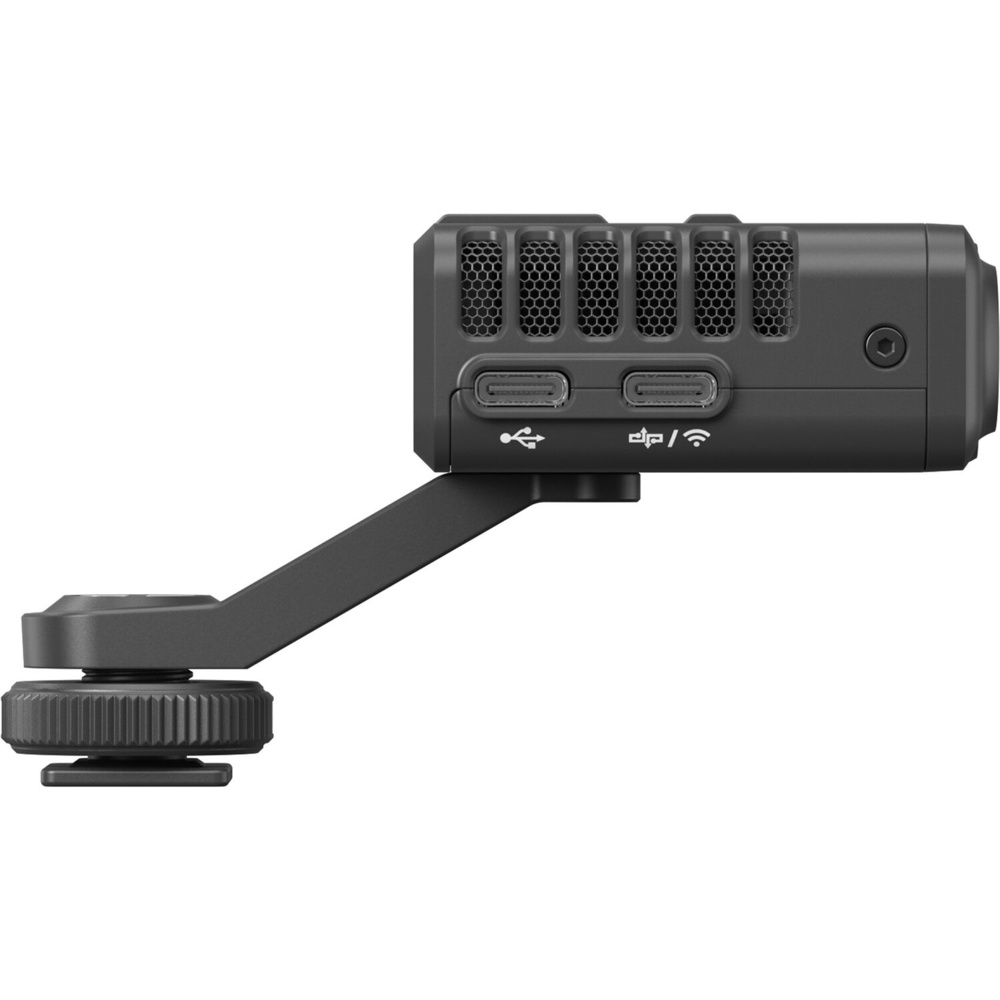

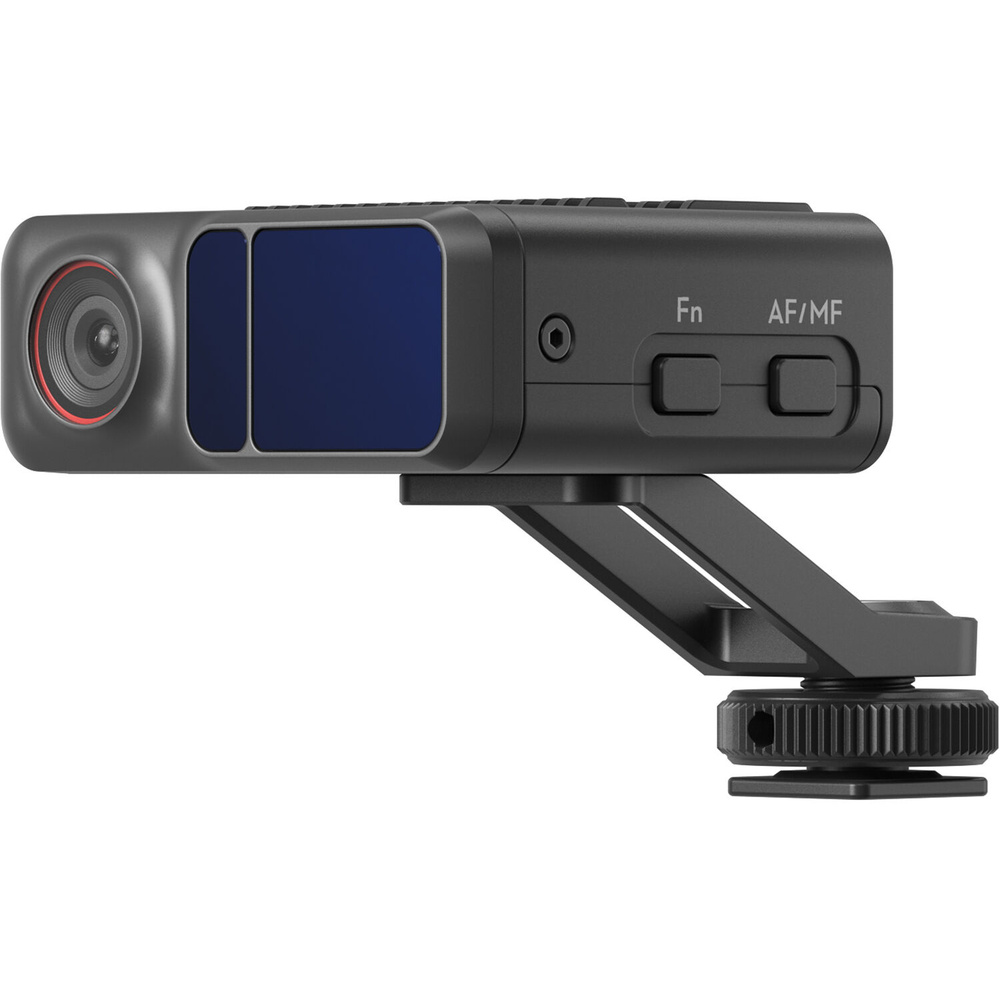

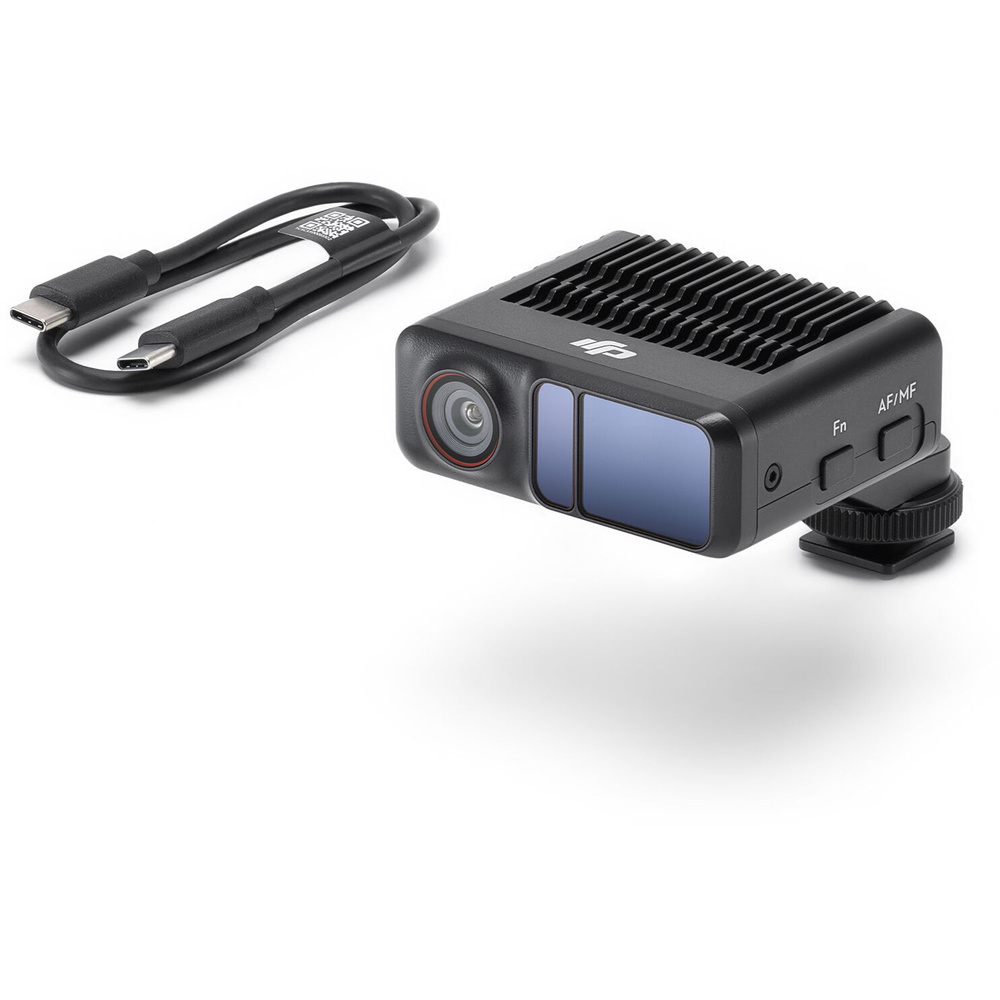

- DJI Focus Pro LiDAR

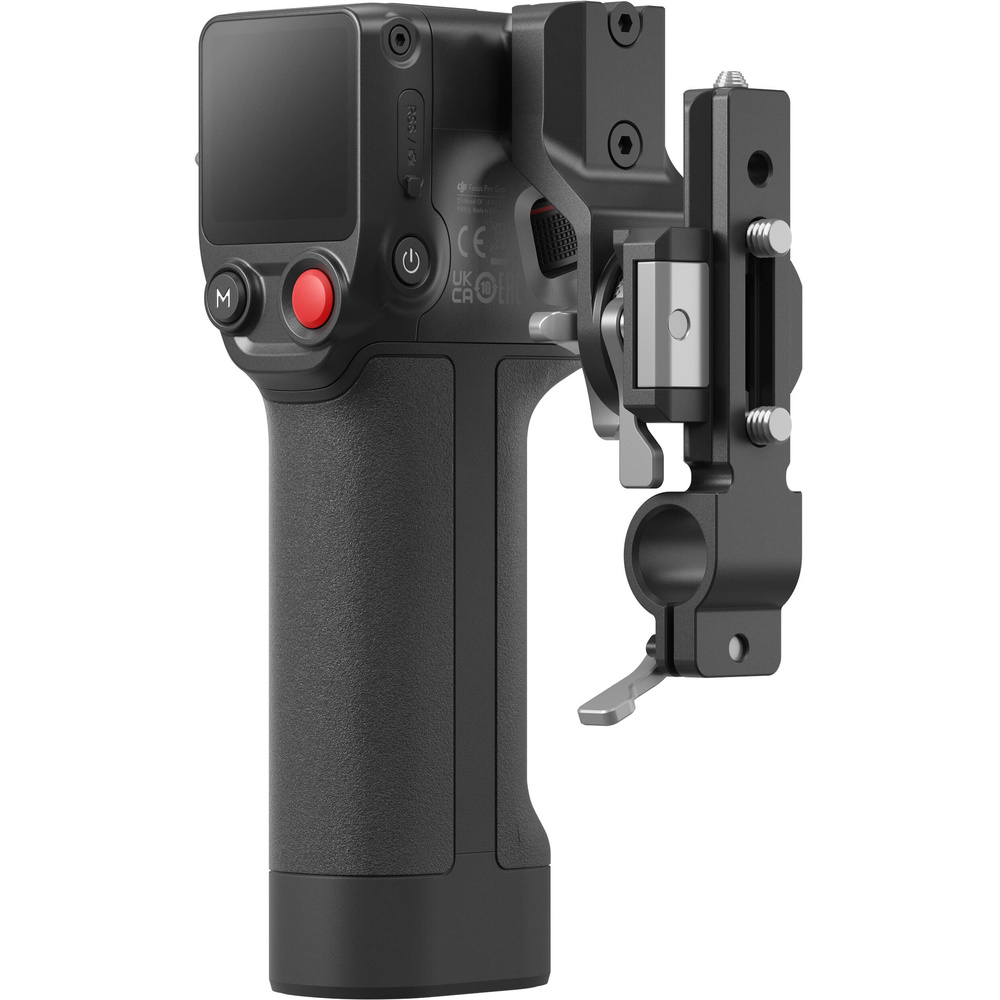

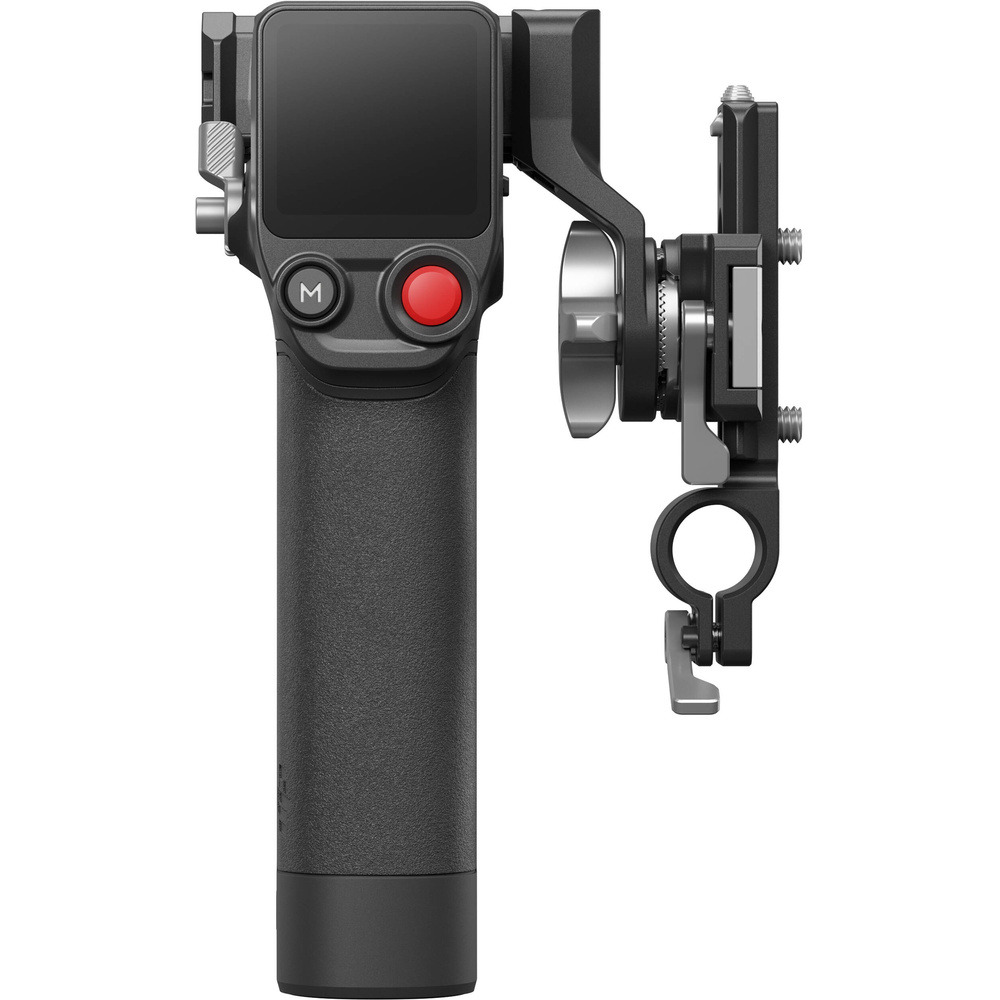

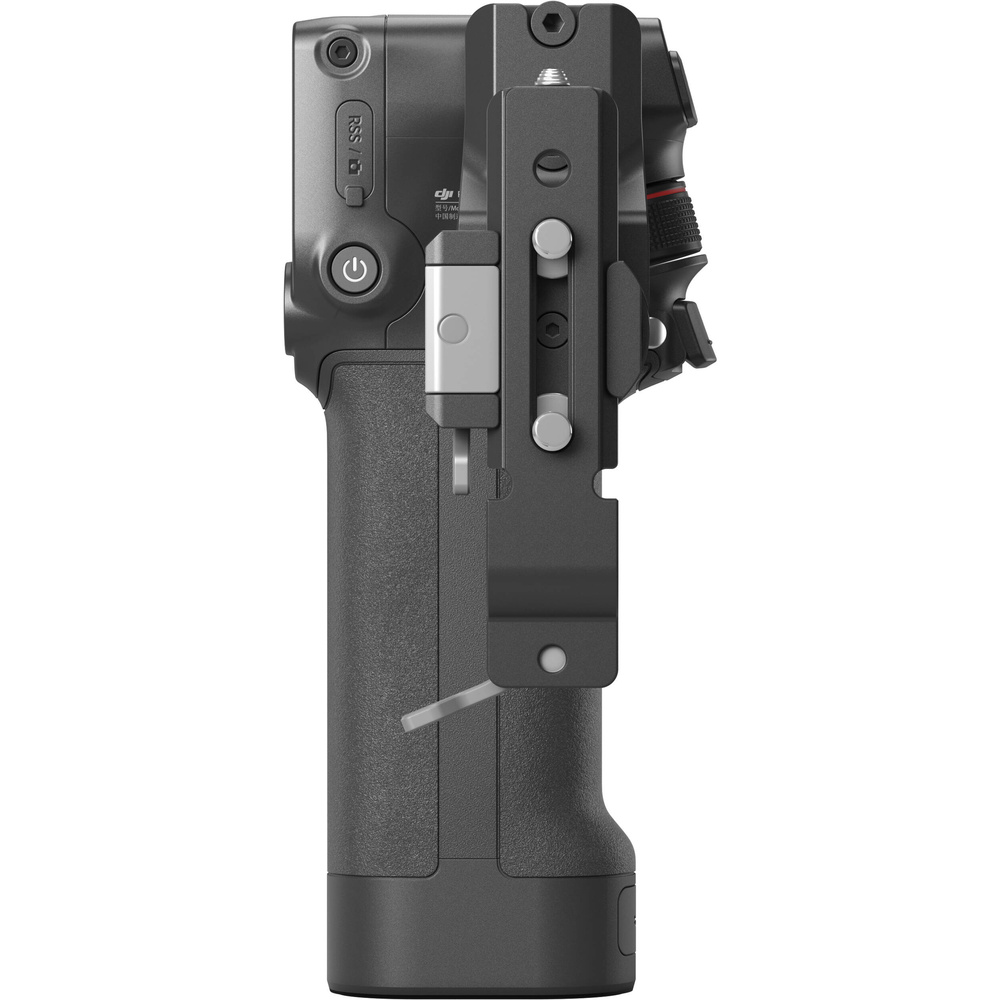

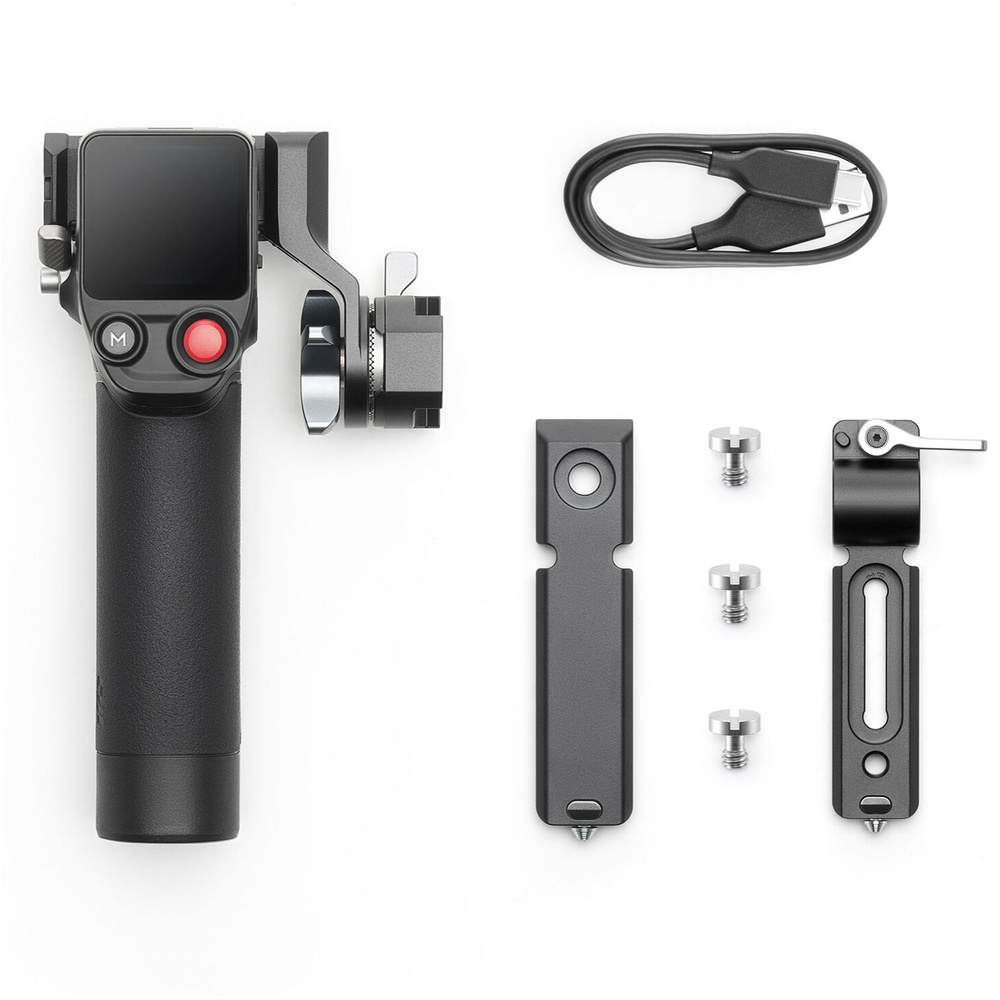

- DJI Focus Pro Grip

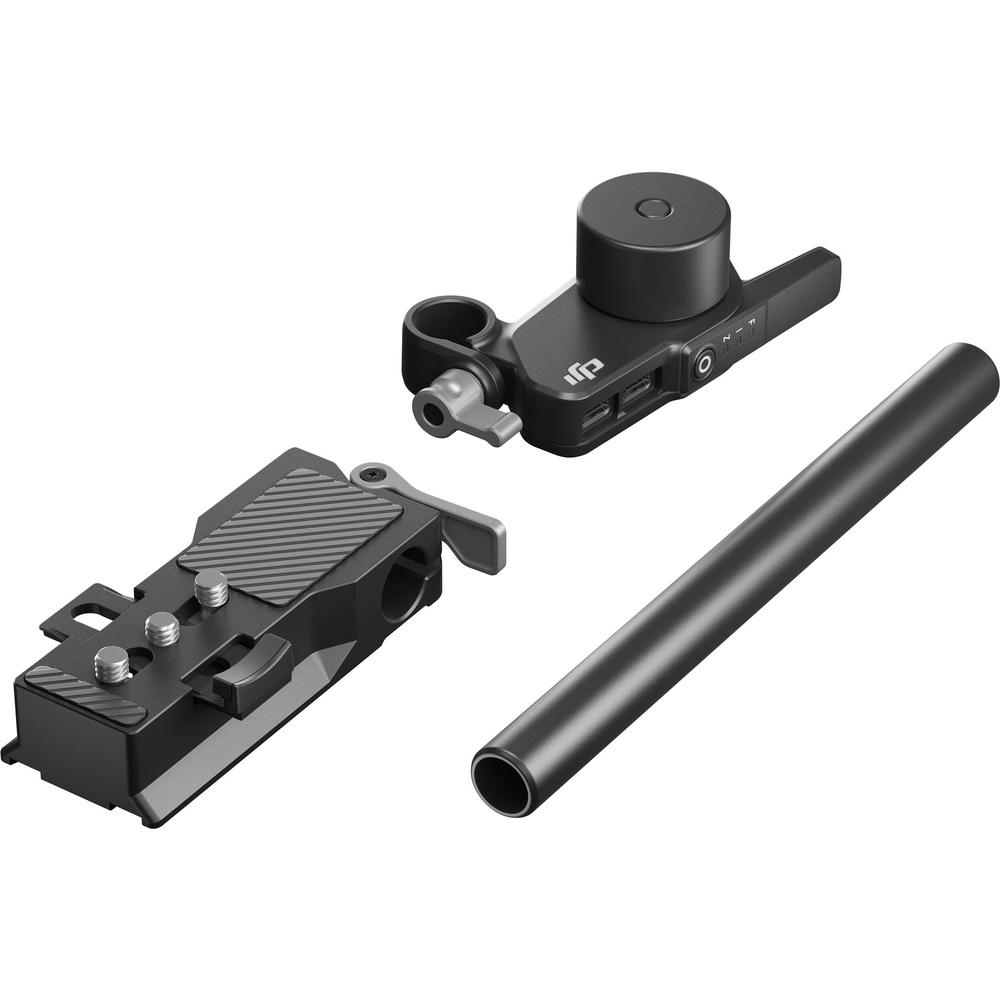

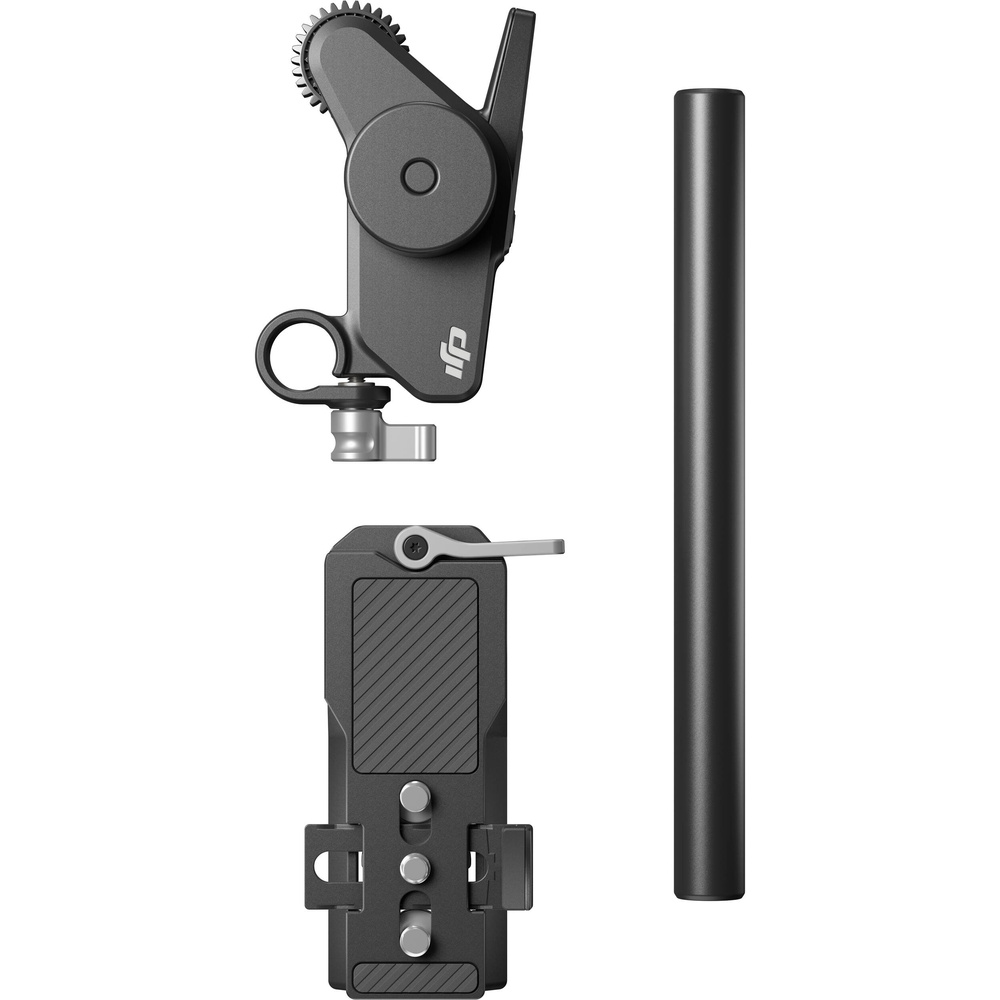

- DJI Focus Pro Motor
- Carrying Case
