Description
Blackmagic Design Smartscope Duo 4K Rack Mounted Dual 6G-SDI Monitors: a production monitor.
Highlights include supports SD/HD/3G/6G-SDI, auto format sensing & selection, 1 x loop-through SDI I/O per Monitor, select video, waveform, vectorscope and RGB parade, YUV parade, histogram.
Key specifications: weight 1.53 kg; dimensions (WxHxD) 48.3 x 13.3 x 3.2 cm 3 RU; screen size 8" (20.3 cm); video sampling 4:4:4 4:2:2; bit depth 8-bit.
An external monitor gives a larger, brighter view with exposure and focus tools the camera screen lacks. In the box: Blackmagic Design smartscope duo 4K rack mounted dual 6G-SDI monitors, Power supply and limited 1-Year warranty. Manufacturer model number HDL-SMTWSCOPEDUO4K2.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Supported Formats | UHD 4K 3840 x 2160p 23.98/24/25/29.97/30 2K 2048 x 1556PsF 23.98/24/25 2048 x 1080PsF 23.98/24/25 2048 x 1080p 23.98/24/25 HD 1080p 23.98/24/25/29.97/30/50/59.94/60 1080PsF 23.98/24/25/29.97/30 1080i 50/59.94/60 720p 50/59.94/60 SD NTSC, PAL |
|---|---|
| SDI Compliance | SMPTE 259M SMPTE 292M SMPTE 296M SMPTE 372M SMPTE 425M |
| Video Sampling | 4:4:4 4:2:2 |
| Bit Depth | 8-bit |
| Colour Space | YUV RGB |
| Audio Sampling | 48 KHz |
| Screen Size | 8" (20.3 cm) |

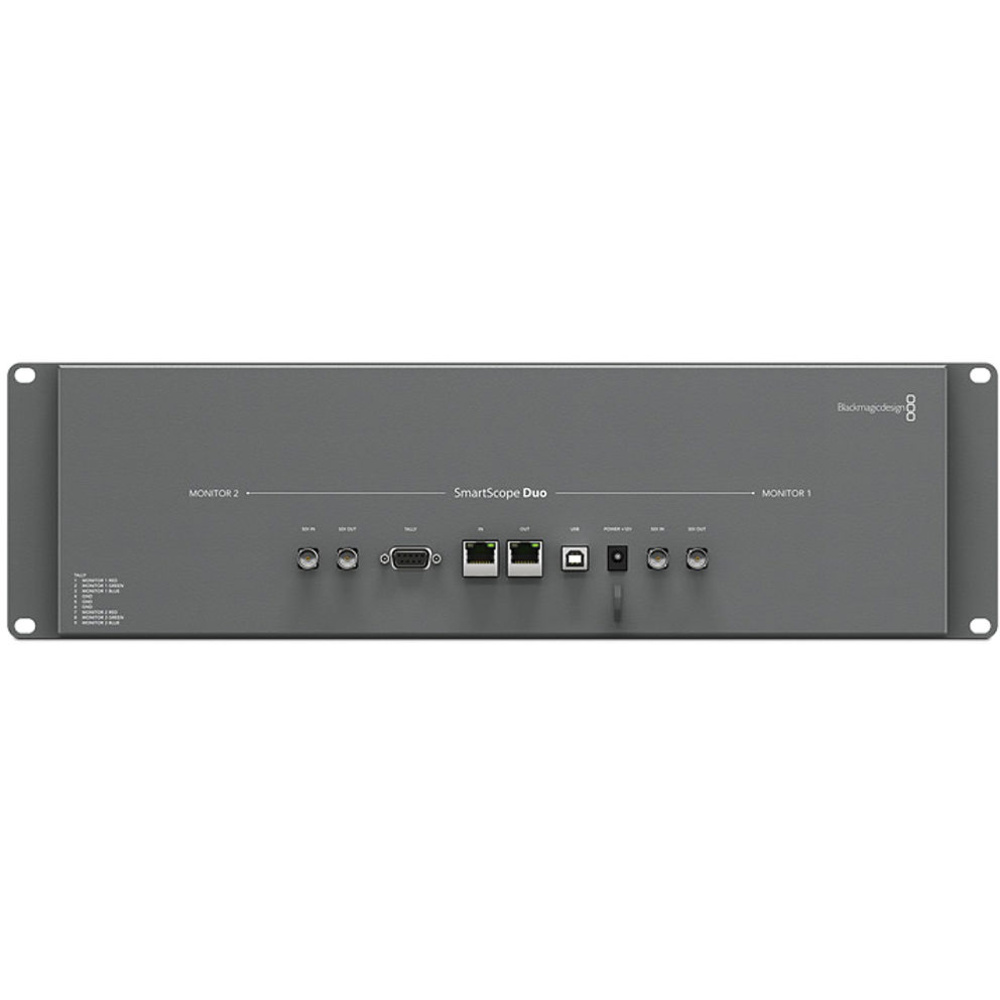

| Inputs/Outputs | Video Inputs 1 x 6G/3G/HD/SD-SDI per monitor Video Outputs 1 x 6G/3G/HD/SD-SDI reclocked loop-through per monitor Audio Inputs 16 Channel embedded in SDI signal Audio Outputs 16 Channel embedded in SDI signal |
| Tally | 1 x 9-pin D connector |
| Computer Interface | 2 x Ethernet (1 x in, 1 x out) USB 2.0 (software updates and Ethernet configuration) |
| Computer Requirements | Mac OS OS X 10.7 or later OS X 10.8 or later Windows Windows 7 Windows 8 |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -20 to 45°C |
| Relative Humidity | 0 to 90%, non-condensing |
| Power Requirements | 12 to 15 VDC |
| Power Consumption | Less than 20 W |
| Dimensions (WxHxD) | 48.3 x 13.3 x 3.2 cm 3 RU |
| Weight | 1.53 kg |
In the box
- Blackmagic Design Smartscope Duo 4K Rack Mounted Dual 6G-SDI Monitors
- Power Supply
- Limited 1-Year Warranty
